SKU: DGE17FW-DURB

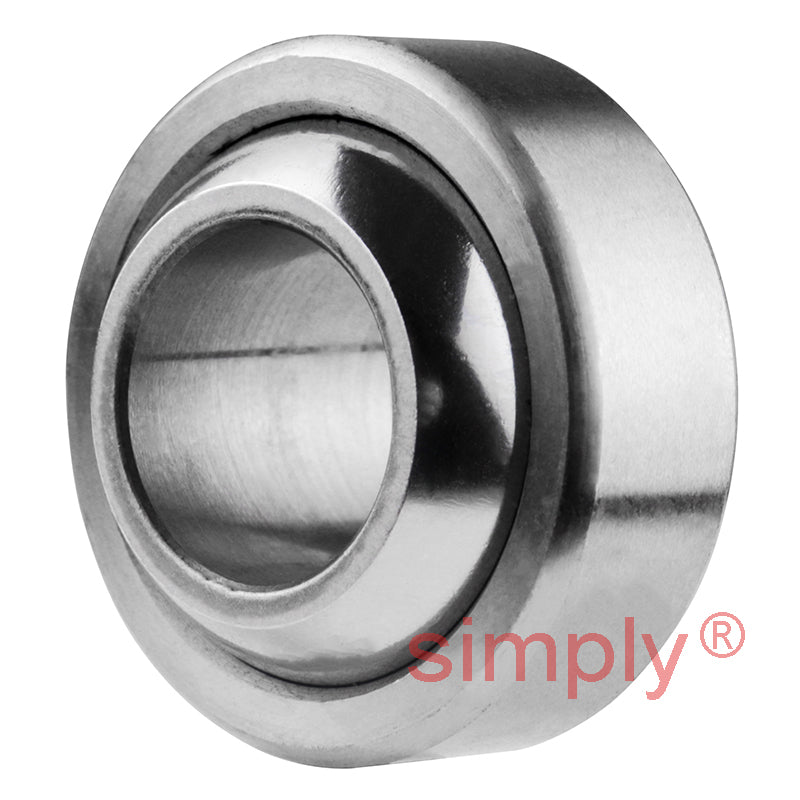

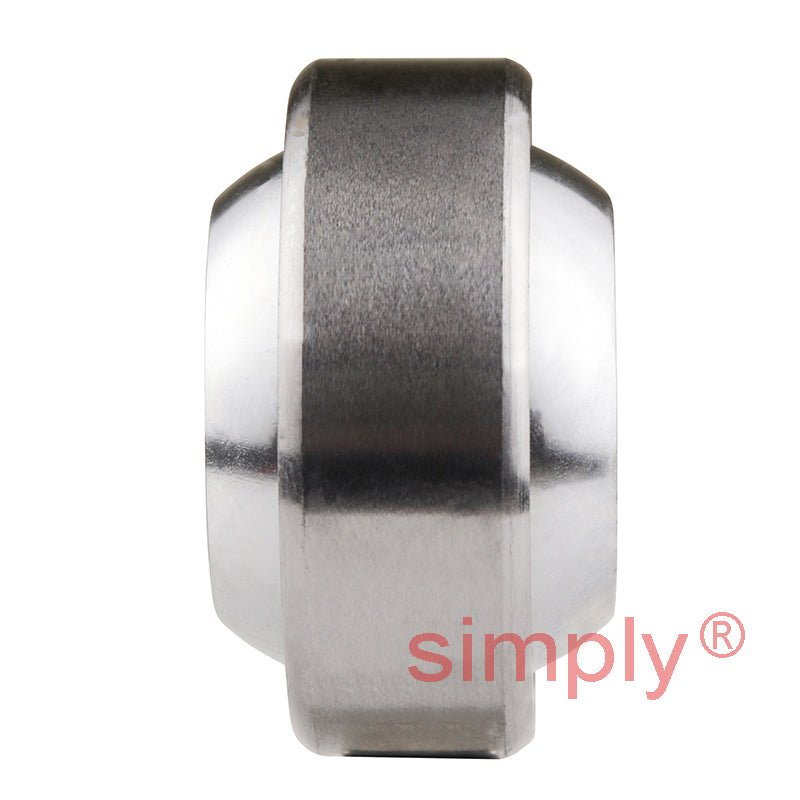

Durbal DGE17FW Maintenance Free Steel / PTFE Lined Spherical Plain Bearing 17x35x20mm
Durbal DGE17FW Maintenance Free Steel / PTFE Lined Spherical Plain Bearing 17x35x20mm
Regular price
CHF 20.00
ex VAT
Regular price
Sale price
CHF 20.00
ex VAT
Equivalent to: GE17FW GEH17C
In stock
Price Break
10+
CHF 15.81
19+
CHF 14.92
29+
CHF 14.74
39+
CHF 14.56
49+
CHF 14.39
74+
CHF 14.21
99+
CHF 13.32
199+
CHF 13.14
249+
CHF 12.96
499+
CHF 12.79
999+
CHF 12.43
Description
Description

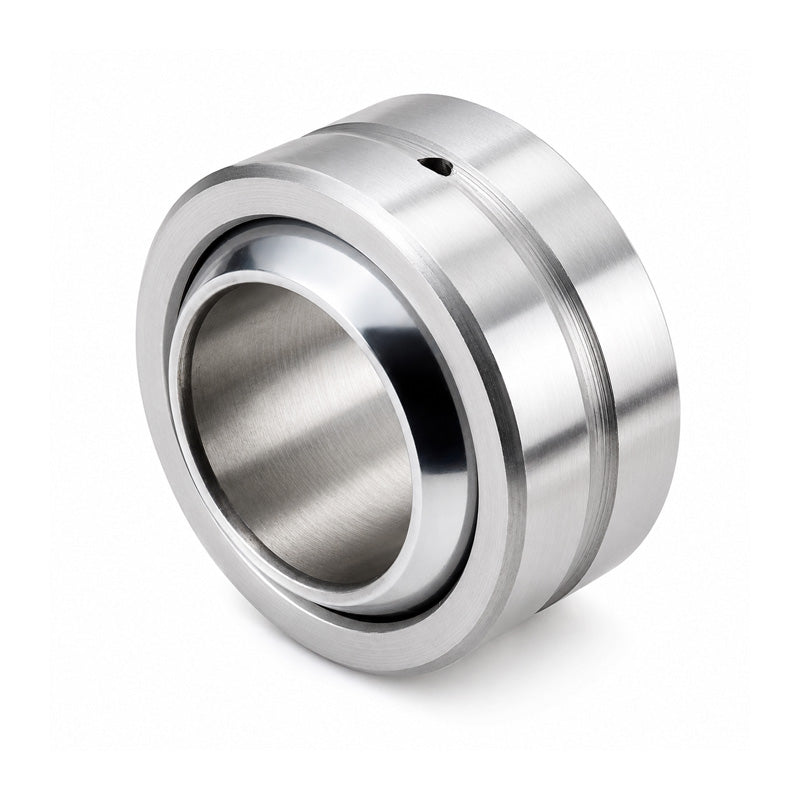

DURBAL Radial-Spherical Plain Bearing - Sliding Combination Steel/PTFE: These spherical bearings consist of a hardened, polished steel joint ball with a heat-treated steel outer ring lined with bronze - PTFE-composite. Suitable for use with high unidirectional loads. Sliding combination: Steel with inset sliding film of bronze–PTFE compound material. Temperature range: -40 deg C to +200 deg C.
Note: Wider joint ball and larger outside diameter compared to DGE_UK series, to enable higher load ratings and larger tilt angle
Up to size 12 joint ball is hard chromium plated
Equivalent: GE17FW GEH17C
- Brand / Quality:
- Durbal - High Quality
- Inside Diameter:
- 17mm
- Material:
- PTFE Lined
Technical
Technical
| d | 17mm |
|---|---|
| d1 | 21mm |
| D | 35mm |
| dk | 29mm |
| B | 20mm |
| C | 12mm |
| rs | 0.3mm |
| r1s | 0.3mm |
| tilt angle α | 19 deg |
| weight | 0.083kg |
| basic load rating dyn C | 31 kN |
| basic load rating stat Co | 78 kN |
| radial clearance CN | 5-35 µm |
