SKU: DGE20-UK-DURB

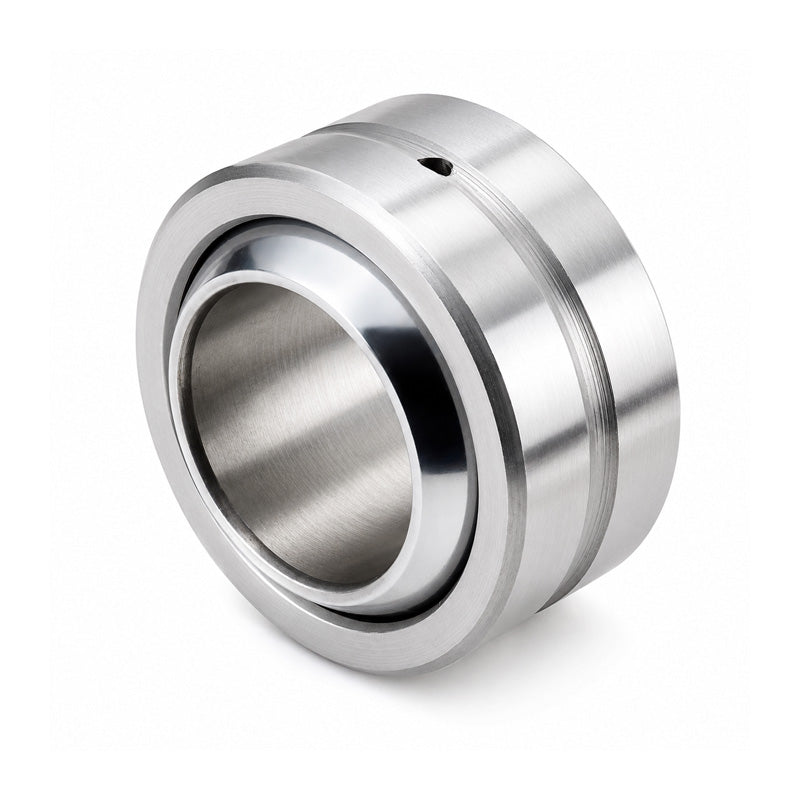

Durbal DGE20-UK Maintenance Free Steel / PTFE Lined Spherical Plain Bearing 20x35x16mm

Name: Durbal DGE20-UK Maintenance Free Steel / PTFE Lined Spherical Plain Bearing 20x35x16mm
Brand: Durbal
SKU: DGE20-UK-DURB
Price: 15.00 CHF
Availability: InStock

CHF 15.00 ex VAT

Sale Sold out

Equivalent to: GE20UK GE20C

Low stock

Price Break

10+ CHF 11.60

19+ CHF 10.95

29+ CHF 10.81

39+ CHF 10.68

49+ CHF 10.55

74+ CHF 10.42

99+ CHF 9.77

199+ CHF 9.64

249+ CHF 9.51

499+ CHF 9.38

999+ CHF 9.12

Request Quotation

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More

Description

DURBAL Radial-Spherical Plain Bearing - Sliding Combination Steel/PTFE: These spherical bearings consist of a hardened, polished steel joint ball with a heat-treated outer ring lined with bronze - PTFE-composite. Suitable for use with high unilaterally acting loads. Sliding combination - steel with inset sliding film of bronze–PTFE compound material. Temperature range: -40 deg C to +200 deg C.
Note: Up to size 12 joint ball is hard chromium plated.

Equivalent: GE20UK GE20C

Brand / Quality:: Durbal - High Quality
Inside Diameter:: 20mm
Material:: PTFE Lined

Technical

d	20mm
d1	24mm
D	35mm
dk	29mm
B	16mm
C	12mm
rs	0.3mm
r1s	0.3mm
tilt angle α	9 deg
weight	0.066kg
basic load rating dyn C	31 kN
basic load rating stat Co	78 kN
radial clearance CN	5-35 µm
