SKU: DGE25FW-DURB

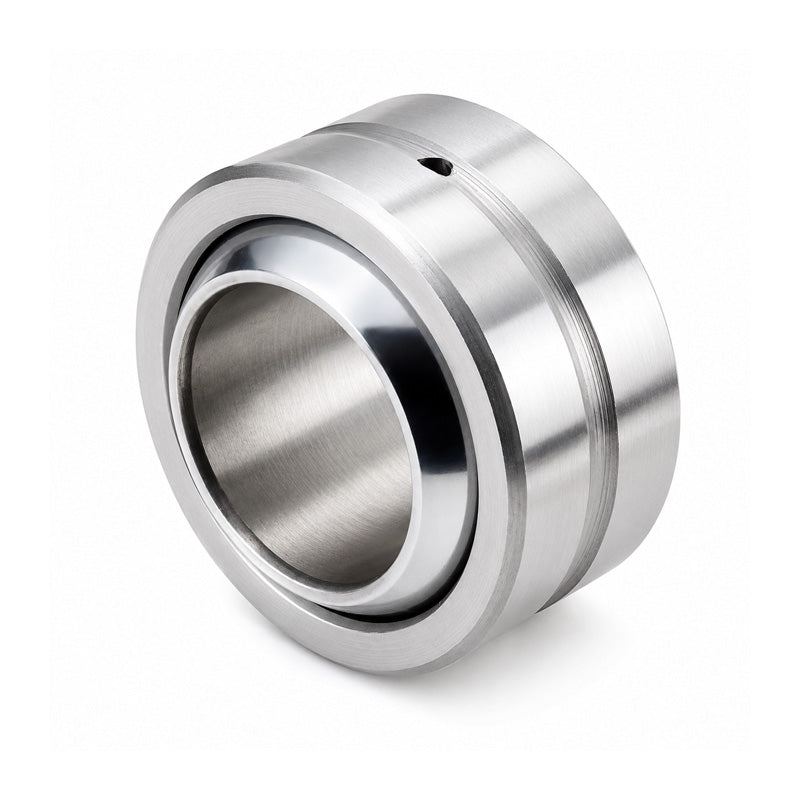

Durbal DGE25FW Maintenance Free Steel / PTFE Lined Spherical Plain Bearing 25x47x28mm
Durbal DGE25FW Maintenance Free Steel / PTFE Lined Spherical Plain Bearing 25x47x28mm
Regular price
CHF 31.00
ex VAT
Regular price
Sale price
CHF 31.00
ex VAT
Equivalent to: GE25FW GEH25C
In stock
Price Break
10+
CHF 24.34
19+
CHF 22.97
29+
CHF 22.70
39+
CHF 22.43
49+
CHF 22.15
74+
CHF 21.88
99+
CHF 20.51
199+
CHF 20.24
249+
CHF 19.97
499+
CHF 19.69
999+
CHF 19.15
Description
Description
DURBAL Radial-Spherical Plain Bearing - Sliding Combination Steel/PTFE: These spherical bearings consist of a hardened, polished steel joint ball with a heat-treated steel outer ring lined with bronze - PTFE-composite. Suitable for use with high unidirectional loads. Sliding combination: Steel with inset sliding film of bronze–PTFE compound material. Temperature range: -40 deg C to +200 deg C.
Note: Wider joint ball and larger outside diameter compared to DGE_UK series, to enable higher load ratings and larger tilt angle
Up to size 12 joint ball is hard chromium plated
Equivalent: GE25FW GEH25C
- Brand / Quality:
- Durbal - High Quality
- Inside Diameter:
- 25mm
- Material:
- PTFE Lined
Technical
Technical
| d | 25mm |
|---|---|
| d1 | 29mm |
| D | 47mm |
| dk | 40.7mm |
| B | 28mm |
| C | 18mm |
| rs | 0.6mm |
| r1s | 0.6mm |
| tilt angle α | 17 deg |
| weight | 0.203kg |
| basic load rating dyn C | 65 kN |
| basic load rating stat Co | 166 kN |
| radial clearance CN | 6-44 µm |
