SKU: DGE50-UK-2RS-DURB

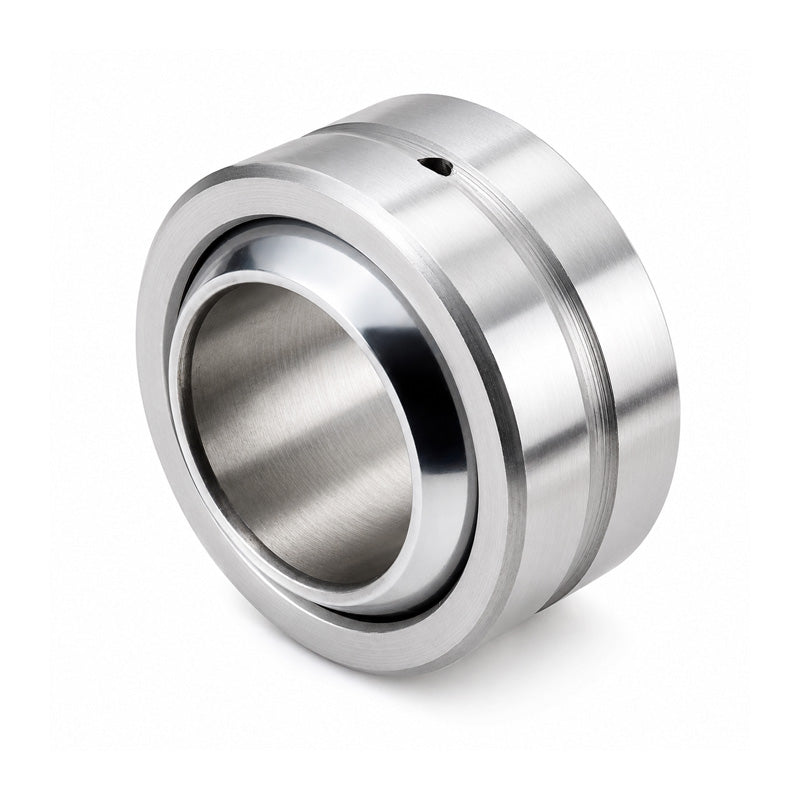

Durbal DGE50-UK-2RS Maintenance Free Steel / PTFE Lined Spherical Plain Bearing with Seals 50x75x35mm
Durbal DGE50-UK-2RS Maintenance Free Steel / PTFE Lined Spherical Plain Bearing with Seals 50x75x35mm
Regular price
CHF 46.00
ex VAT
Regular price
Sale price
CHF 46.00
ex VAT
Equivalent to: GE50UK GE50C
Low stock
Price Break
10+
CHF 36.40
19+
CHF 34.36
29+
CHF 33.95
39+
CHF 33.54
49+
CHF 33.13
74+
CHF 32.72
99+
CHF 30.68
199+
CHF 30.27
249+
CHF 29.86
499+
CHF 29.45
999+
CHF 28.63
Description
Description
DURBAL Radial-Spherical Plain Bearing with Seals - Sliding Combination Steel/PTFE: These spherical bearings consist of a hardened, polished steel joint ball with a heat-treated, single split outer ring bonded with PTFE- fabric and 2RS seals on both sides. Suitable for use with high unilaterally acting loads. Sliding combination: Steel with bonded PTFE fabric. Temperature range: -40 deg C to +200 deg C.
Note: Up to size 12 joint ball is hard chromium plated.
Benefits: 2RS lip seals on both sides prevent the penetration of coarse dirt particles inside the bearing.
Equivalent: GE50UK GE50C
- Brand / Quality:
- Durbal - High Quality
- Inside Diameter:
- 50mm
- Material:
- PTFE Lined
Technical
Technical
| d | 50mm |
|---|---|
| d1 | 55mm |
| D | 75mm |
| dk | 66mm |
| B | 35mm |
| C | 28mm |
| rs | 0.6mm |
| r1s | 1mm |
| tilt angle α | 6 deg |
| weight | 0.546kg |
| basic load rating dyn C | 442 kN |
| basic load rating stat Co | 737 kN |
| radial clearance CN | 0-60 µm |
