SKU: DGEG10E-DURB

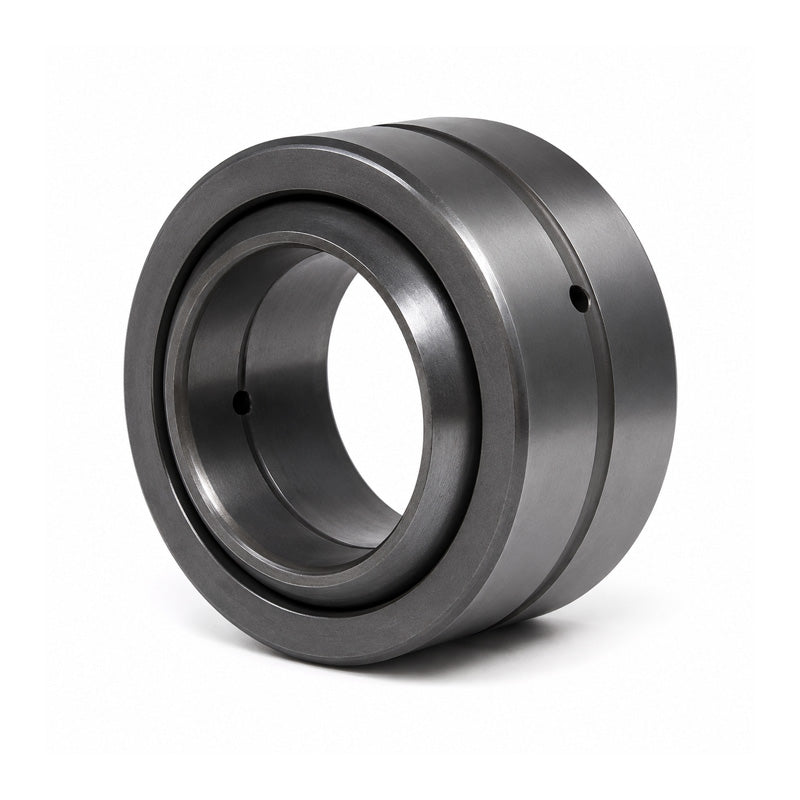

Durbal DGEG10E Maintenance Required Steel / Steel Spherical Plain Bearing 10x22x12mm - Allow 2-3 Days
Durbal DGEG10E Maintenance Required Steel / Steel Spherical Plain Bearing 10x22x12mm - Allow 2-3 Days
Regular price
CHF 9.00
ex VAT
Regular price
Sale price
CHF 9.00
ex VAT
Equivalent to: GE10FO GEH10ES
In stock
Price Break
10+
CHF 7.65
19+
CHF 7.34
29+
CHF 7.19
39+
CHF 6.96
49+
CHF 6.80
74+
CHF 6.42
99+
CHF 5.41
199+
CHF 0.00
249+
CHF 0.00
499+
CHF 0.00
999+
CHF 0.00
Description
Description
DURBAL Maintenance Required Spherical-Plain Bearing - Sliding Combination Steel/Steel: These spherical bearings consist of a hardened, phosphated steel joint ball and a hardened, phosphated, single split steel outer ring with split, oil groove and drill holes. (Outer ring has a split from size 15) For use with high and alternating loads. Temperature range: -40 deg C to +200 deg C.
Note: Single Split outer ring from size 15
Wider joint ball and larger outside diameter compared to DGE_ES series, to enable higher load ratings and larger tilt angle
Equivalent: GE10FO GEH10ES
- Brand / Quality:
- Durbal - High Quality
- Inside Diameter:
- 10mm
Technical
Technical
| d | 10mm |
|---|---|
| d1 | 13.4mm |
| D | 22mm |
| dk | 18mm |
| B | 12mm |
| C | 7mm |
| rs | 0.3mm |
| r1s | 0.3mm |
| tilt angle α | 18 deg |
| weight | 0.02kg |
| basic load rating dyn C | 10.8 kN |
| basic load rating stat Co | 54 kN |
| CN | 32-68 µm |
