SKU: DGEZ50ES-DURB

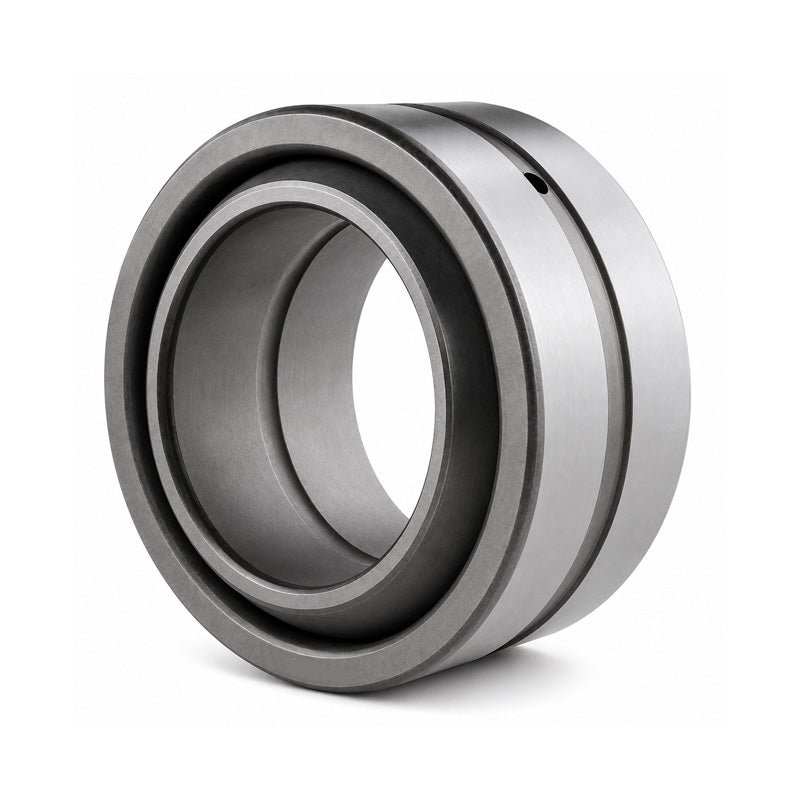

Durbal DGEZ50ES Maintenance Required Steel / Steel Imperial Spherical Plain Bearing 2x2-9/32x3-3/16 inch
Durbal DGEZ50ES Maintenance Required Steel / Steel Imperial Spherical Plain Bearing 2x2-9/32x3-3/16 inch
Regular price
CHF 54.00
ex VAT
Regular price
Sale price
CHF 54.00
ex VAT
In stock
Price Break
10+
CHF 42.42
19+
CHF 40.03
29+
CHF 39.56
39+
CHF 39.08
49+
CHF 38.60
74+
CHF 38.13
99+
CHF 35.75
199+
CHF 35.27
249+
CHF 34.79
499+
CHF 34.32
999+
CHF 33.36
Description
Description
DURBAL Maintenance Required Spherical-Plain Bearing - Sliding Combination Steel/Steel: These spherical bearings consist of a hardened, phosphated steel joint ball and a hardened, phosphated, single split steel outer ring with split, oil groove and drill holes. (Outer ring has a split from size 15) For use with high and alternating loads. Temperature range: -40 deg C to +200 deg C.
Note: Single Split outer ring from size 15
- Brand / Quality:
- Durbal - High Quality
- Inside Diameter:
- 50.8mm = 2 inch
Technical
Technical
| d | 50.8mm = 2inch |
|---|---|
| d1 | 57.9mm |
| D | 80.963mm |
| dk | 73mm |
| B | 44.45mm |
| C | 38.1mm |
| rs | 0.6mm |
| r1s | 1mm |
| tilt angle α | 6 deg |
| weight | 0.932kg |
| basic load rating dyn C | 224 kN |
| basic load rating stat Co | 670 kN |
| CN | 80-180 µm |
