SKU: DGIHN-K100LO-DURB

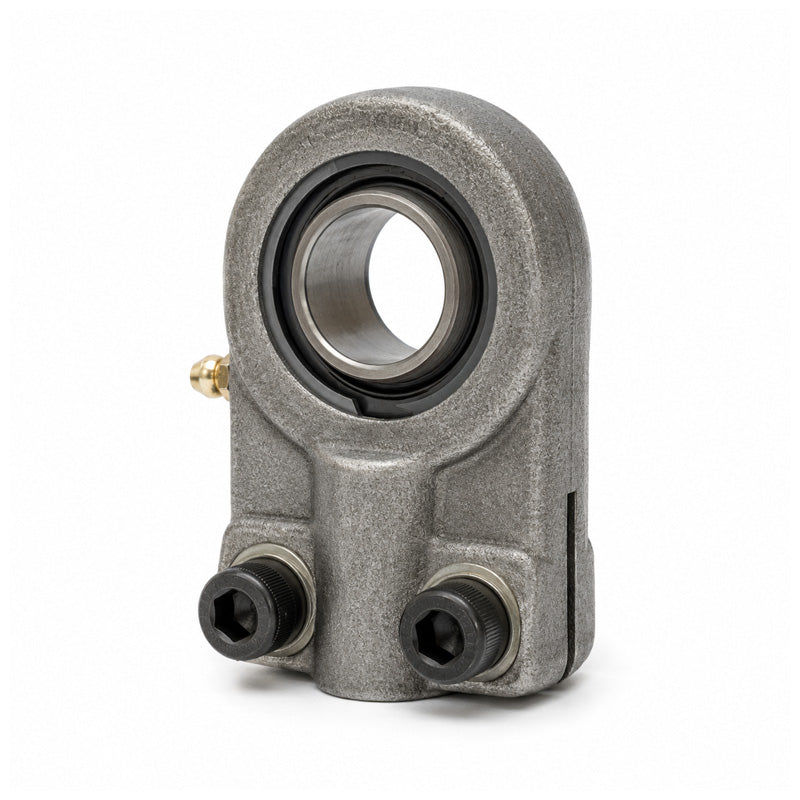

Durbal DGIHN-K100LO Maintenance Required Hydraulic Rod End with Slot and Clamping Arrangement M80x3 Thread
Durbal DGIHN-K100LO Maintenance Required Hydraulic Rod End with Slot and Clamping Arrangement M80x3 Thread
Regular price
CHF 624.00
ex VAT
Regular price
Sale price
CHF 624.00
ex VAT
Equivalent to: GIHNK100LO SIQG100ES
In stock
Price Break
10+
CHF 496.71
19+
CHF 468.80
29+
CHF 463.22
39+
CHF 457.64
49+
CHF 452.06
74+
CHF 446.48
99+
CHF 418.58
199+
CHF 412.99
249+
CHF 407.41
499+
CHF 401.83
999+
CHF 390.67
Description
Description
DURBAL Maintenance Required Female Hydraulic-Rod Ends with Pressed Spherical-Plain Bearing (Slot and Clamping Arrangement): Threaded female hydraulic rod end consisting of a forged, heat-treated steel housing with a steel, hardened, ground, phosphated outer ring with single split, oil groove and drill holes and a steel joint ball. Used for alternating radial loads. Female thread with slot, clamping arrangement. Temperature range -40 deg C to +200 deg C.
Equivalent: GIHNK100LO SIQG100ES
- Brand / Quality:
- Durbal - High Quality
- Thread Size:
- M80x3
- Thread M / F:
- Female
- Thread Direction:
- Right Hand
- Inside Diameter:
- 100mm
Technical
Technical
| Thread Direction | Right |
|---|---|
| d | 100mm |
| d1 | 113mm |
| d2 | 210mm |
| d4 | 110mm |
| d5 | 178mm |
| dk | 150mm |
| G (Thread) | M80x3mm |
| B | 100mm |
| C1 | 84mm |
| C2 | 62mm |
| l3 | 96mm |
| l4 | 322mm |
| l7 | 98mm |
| h1 | 210mm |
| tilt angle α | 4 deg |
| weight | 28kg |
| basic load rating dyn C | 488 kN |
| basic load rating stat Co | 848 kN |
| radial clearance CN | 8-165 µm |
