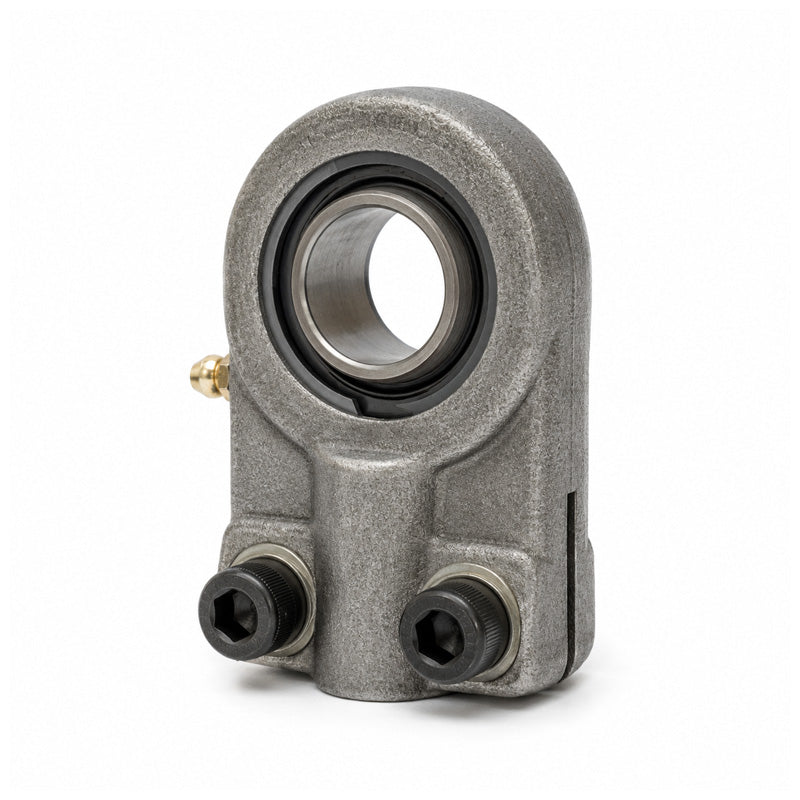

Durbal DGIHN-K20LO Maintenance Required Hydraulic Rod End with Slot and Clamping Arrangement M16x1.5 Thread
Durbal DGIHN-K20LO Maintenance Required Hydraulic Rod End with Slot and Clamping Arrangement M16x1.5 Thread
Regular price
CHF 26.00
ex VAT
Regular price
Sale price
CHF 26.00
ex VAT
Equivalent to: GIHNK20LO SIQG20ES
In stock
Price Break
10+
CHF 20.32
19+
CHF 19.18
29+
CHF 18.95
39+
CHF 18.72
49+
CHF 18.49
74+
CHF 18.26
99+
CHF 17.12
199+
CHF 16.89
249+
CHF 16.67
499+
CHF 16.44
999+
CHF 15.98
Description
Description
DURBAL Maintenance Required Female Hydraulic-Rod Ends with Pressed Spherical-Plain Bearing (Slot and Clamping Arrangement): Threaded female hydraulic rod end consisting of a forged, heat-treated steel housing with a steel, hardened, ground, phosphated outer ring with single split, oil groove and drill holes and a steel joint ball. Used for alternating radial loads. Female thread with slot, clamping arrangement. Temperature range -40 deg C to +200 deg C.
Equivalent: GIHNK20LO SIQG20ES
- Brand / Quality:
- Durbal - High Quality
- Thread Size:
- M16x1.5
- Thread M / F:
- Female
- Thread Direction:
- Right Hand
- Inside Diameter:
- 20mm
Technical
Technical
| Thread Direction | Right |
|---|---|
| d | 20mm |
| d1 | 25mm |
| d2 | 47mm |
| d4 | 25mm |
| d5 | 47mm |
| dk | 29mm |
| G (Thread) | M16x1.5mm |
| B | 20mm |
| C1 | 17mm |
| C2 | 19mm |
| l3 | 23mm |
| l4 | 77mm |
| l7 | 22mm |
| h1 | 52mm |
| tilt angle α | 4 deg |
| weight | 0.4kg |
| basic load rating dyn C | 24 kN |
| basic load rating stat Co | 38.4 kN |
| radial clearance CN | 8-82 µm |
