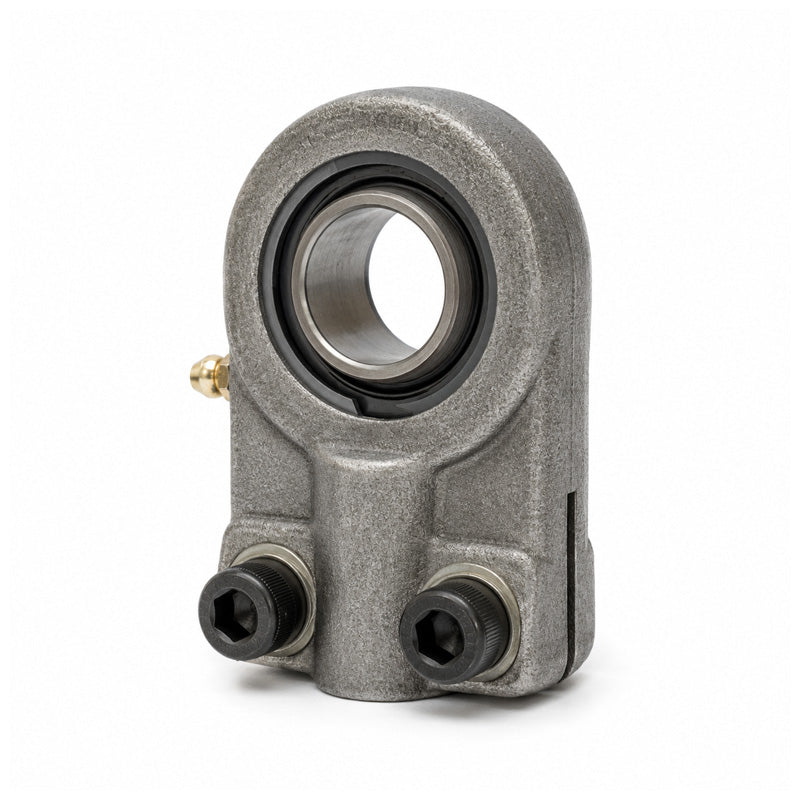

Durbal DGIHN-K25LO Maintenance Required Hydraulic Rod End with Slot and Clamping Arrangement M20x1.5 Thread
Durbal DGIHN-K25LO Maintenance Required Hydraulic Rod End with Slot and Clamping Arrangement M20x1.5 Thread
Regular price
CHF 36.00
ex VAT
Regular price
Sale price
CHF 36.00
ex VAT
Equivalent to: GIHNK25LO SIQG25ES
In stock
Price Break
10+
CHF 27.98
19+
CHF 26.41
29+
CHF 26.10
39+
CHF 25.78
49+
CHF 25.47
74+
CHF 25.15
99+
CHF 23.58
199+
CHF 23.27
249+
CHF 22.95
499+
CHF 22.64
999+
CHF 22.01
Description
Description
DURBAL Maintenance Required Female Hydraulic-Rod Ends with Pressed Spherical-Plain Bearing (Slot and Clamping Arrangement): Threaded female hydraulic rod end consisting of a forged, heat-treated steel housing with a steel, hardened, ground, phosphated outer ring with single split, oil groove and drill holes and a steel joint ball. Used for alternating radial loads. Female thread with slot, clamping arrangement. Temperature range -40 deg C to +200 deg C.
Equivalent: GIHNK25LO SIQG25ES
- Brand / Quality:
- Durbal - High Quality
- Thread Size:
- M20x1.5
- Thread M / F:
- Female
- Thread Direction:
- Right Hand
- Inside Diameter:
- 25mm
Technical
Technical
| Thread Direction | Right |
|---|---|
| d | 25mm |
| d1 | 30.5mm |
| d2 | 58mm |
| d4 | 30mm |
| d5 | 54mm |
| dk | 35.5mm |
| G (Thread) | M20x1.5mm |
| B | 25mm |
| C1 | 22mm |
| C2 | 19mm |
| l3 | 29mm |
| l4 | 96mm |
| l7 | 27mm |
| h1 | 65mm |
| tilt angle α | 4 deg |
| weight | 0.66kg |
| basic load rating dyn C | 38.4 kN |
| basic load rating stat Co | 62.4 kN |
| radial clearance CN | 8-100 µm |
