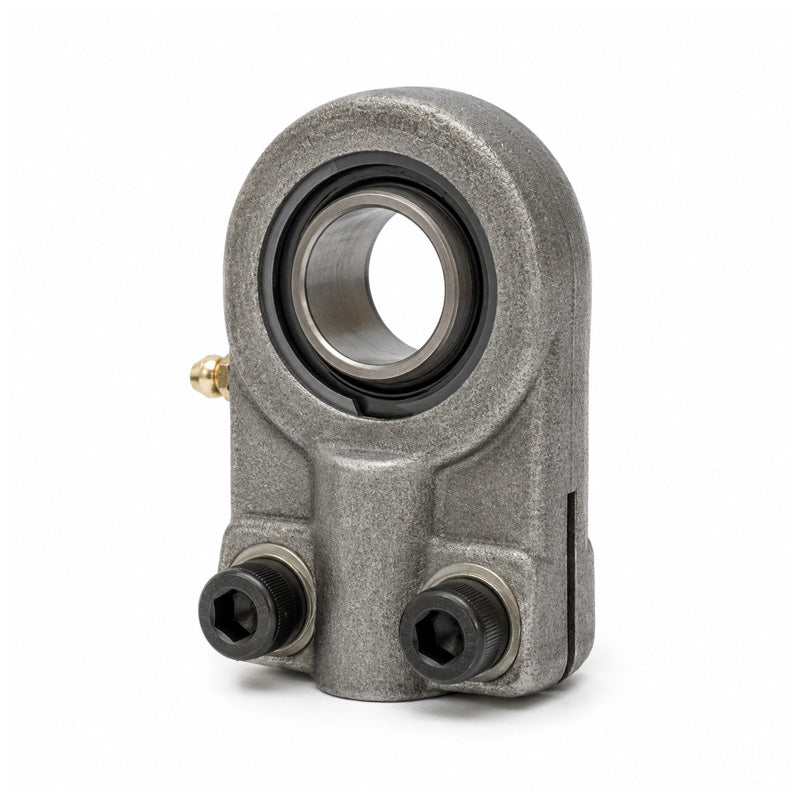

Durbal DGIHN-K40LO Maintenance Required Hydraulic Rod End with Slot and Clamping Arrangement M33x2 Thread
Durbal DGIHN-K40LO Maintenance Required Hydraulic Rod End with Slot and Clamping Arrangement M33x2 Thread
Regular price
CHF 126.00
ex VAT
Regular price
Sale price
CHF 126.00
ex VAT
Equivalent to: GIHNK40LO SIQG40ES
In stock
Price Break
10+
CHF 100.14
19+
CHF 94.52
29+
CHF 93.39
39+
CHF 92.27
49+
CHF 91.14
74+
CHF 90.02
99+
CHF 84.39
199+
CHF 83.26
249+
CHF 82.14
499+
CHF 81.01
999+
CHF 78.76
Description
Description
DURBAL Maintenance Required Female Hydraulic-Rod Ends with Pressed Spherical-Plain Bearing (Slot and Clamping Arrangement): Threaded female hydraulic rod end consisting of a forged, heat-treated steel housing with a steel, hardened, ground, phosphated outer ring with single split, oil groove and drill holes and a steel joint ball. Used for alternating radial loads. Female thread with slot, clamping arrangement. Temperature range -40 deg C to +200 deg C.
Equivalent: GIHNK40LO SIQG40ES
- Brand / Quality:
- Durbal - High Quality
- Thread Size:
- M33x2
- Thread M / F:
- Female
- Thread Direction:
- Right Hand
- Inside Diameter:
- 40mm
Technical
Technical
| Thread Direction | Right |
|---|---|
| d | 40mm |
| d1 | 46mm |
| d2 | 90mm |
| d4 | 47mm |
| d5 | 80mm |
| dk | 53mm |
| G (Thread) | M33x2mm |
| B | 40mm |
| C1 | 33mm |
| C2 | 26mm |
| l3 | 46mm |
| l4 | 146mm |
| l7 | 41mm |
| h1 | 97mm |
| tilt angle α | 4 deg |
| weight | 2.1kg |
| basic load rating dyn C | 80 kN |
| basic load rating stat Co | 163.2 kN |
| radial clearance CN | 8-120 µm |
