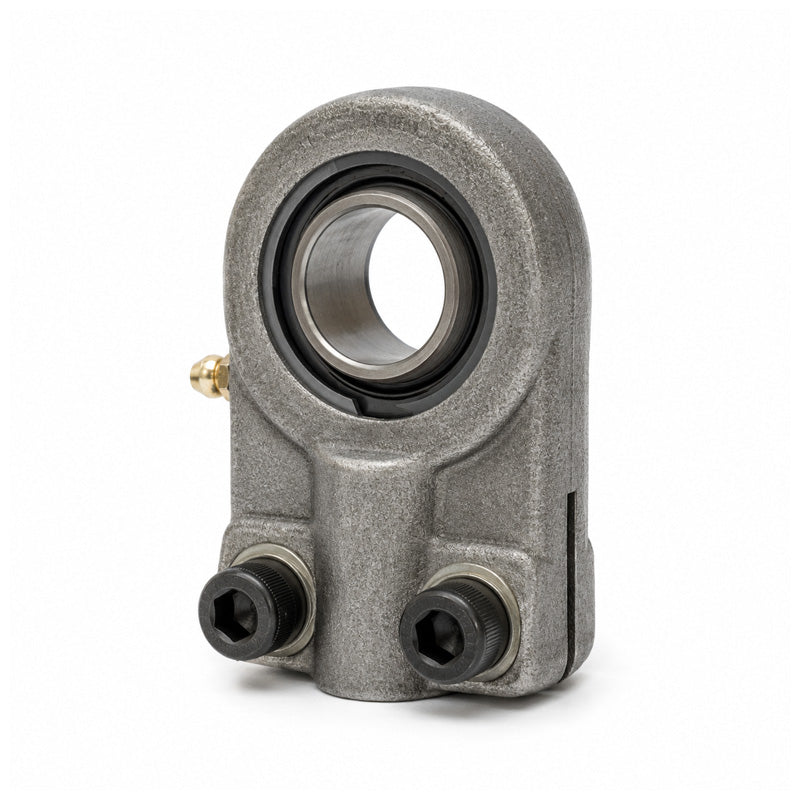

Durbal DGIHN-K50LO Maintenance Required Hydraulic Rod End with Slot and Clamping Arrangement M42x2 Thread
Durbal DGIHN-K50LO Maintenance Required Hydraulic Rod End with Slot and Clamping Arrangement M42x2 Thread
Regular price
CHF 187.00
ex VAT
Regular price
Sale price
CHF 187.00
ex VAT
Equivalent to: GIHNK50LO SIQG50ES
In stock
Price Break
10+
CHF 148.23
19+
CHF 139.90
29+
CHF 138.24
39+
CHF 136.57
49+
CHF 134.91
74+
CHF 133.24
99+
CHF 124.91
199+
CHF 123.25
249+
CHF 121.58
499+
CHF 119.92
999+
CHF 116.59
Description
Description
DURBAL Maintenance Required Female Hydraulic-Rod Ends with Pressed Spherical-Plain Bearing (Slot and Clamping Arrangement): Threaded female hydraulic rod end consisting of a forged, heat-treated steel housing with a steel, hardened, ground, phosphated outer ring with single split, oil groove and drill holes and a steel joint ball. Used for alternating radial loads. Female thread with slot, clamping arrangement. Temperature range -40 deg C to +200 deg C.
Equivalent: GIHNK50LO SIQG50ES
- Brand / Quality:
- Durbal - High Quality
- Thread Size:
- M42x2
- Thread M / F:
- Female
- Thread Direction:
- Right Hand
- Inside Diameter:
- 50mm
Technical
Technical
| Thread Direction | Right |
|---|---|
| d | 50mm |
| d1 | 57mm |
| d2 | 109mm |
| d4 | 58mm |
| d5 | 96mm |
| dk | 66mm |
| G (Thread) | M42x2mm |
| B | 50mm |
| C1 | 41mm |
| C2 | 32mm |
| l3 | 57mm |
| l4 | 179.5mm |
| l7 | 50mm |
| h1 | 120mm |
| tilt angle α | 4 deg |
| weight | 4.4kg |
| basic load rating dyn C | 124.8 kN |
| basic load rating stat Co | 248 kN |
| radial clearance CN | 8-120 µm |
