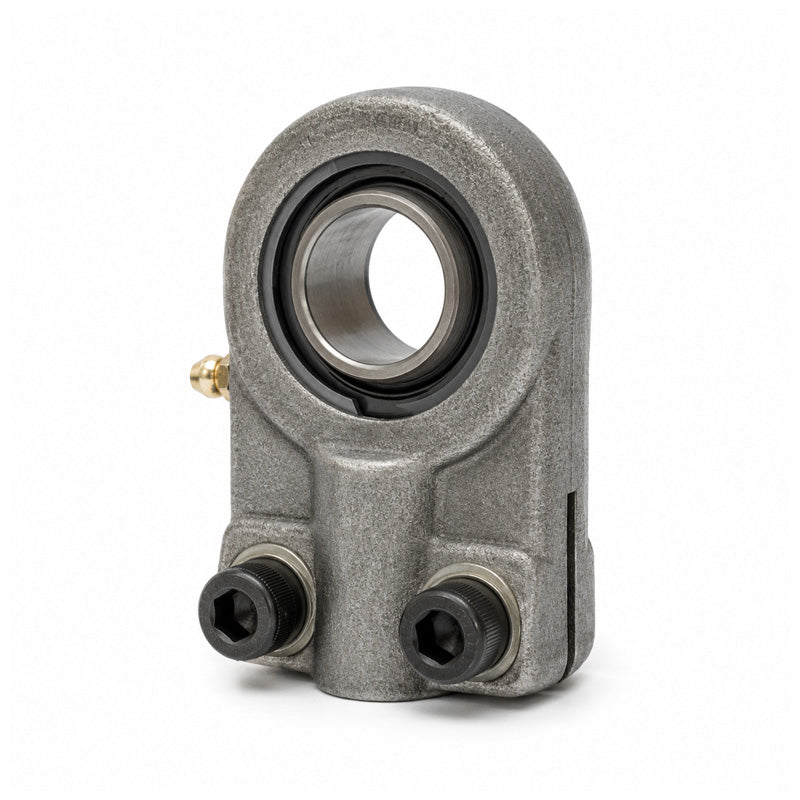

Durbal DGIHN-K63LO Maintenance Required Hydraulic Rod End with Slot and Clamping Arrangement M48x2 Thread
Durbal DGIHN-K63LO Maintenance Required Hydraulic Rod End with Slot and Clamping Arrangement M48x2 Thread
Regular price
CHF 179.00
ex VAT
Regular price
Sale price
CHF 179.00
ex VAT
Equivalent to: GIHNK63LO SIQG63ES
In stock
Price Break
10+
CHF 142.36
19+
CHF 134.36
29+
CHF 132.76
39+
CHF 131.16
49+
CHF 129.56
74+
CHF 127.96
99+
CHF 119.96
199+
CHF 118.36
249+
CHF 116.76
499+
CHF 115.16
999+
CHF 111.97
Description
Description
DURBAL Maintenance Required Female Hydraulic-Rod Ends with Pressed Spherical-Plain Bearing (Slot and Clamping Arrangement): Threaded female hydraulic rod end consisting of a forged, heat-treated steel housing with a steel, hardened, ground, phosphated outer ring with single split, oil groove and drill holes and a steel joint ball. Used for alternating radial loads. Female thread with slot, clamping arrangement. Temperature range -40 deg C to +200 deg C.
Equivalent: GIHNK63LO SIQG63ES
- Brand / Quality:
- Durbal - High Quality
- Thread Size:
- M48x2
- Thread M / F:
- Female
- Thread Direction:
- Right Hand
- Inside Diameter:
- 63mm
Technical
Technical
| Thread Direction | Right |
|---|---|
| d | 63mm |
| d1 | 71.5mm |
| d2 | 136mm |
| d4 | 70mm |
| d5 | 114mm |
| dk | 8.3mm |
| G (Thread) | M48x2mm |
| B | 63mm |
| C1 | 53mm |
| C2 | 38mm |
| l3 | 64mm |
| l4 | 213mm |
| l7 | 62mm |
| h1 | 140mm |
| tilt angle α | 4 deg |
| weight | 7.6kg |
| basic load rating dyn C | 204 kN |
| basic load rating stat Co | 344 kN |
| radial clearance CN | 8-142 µm |
