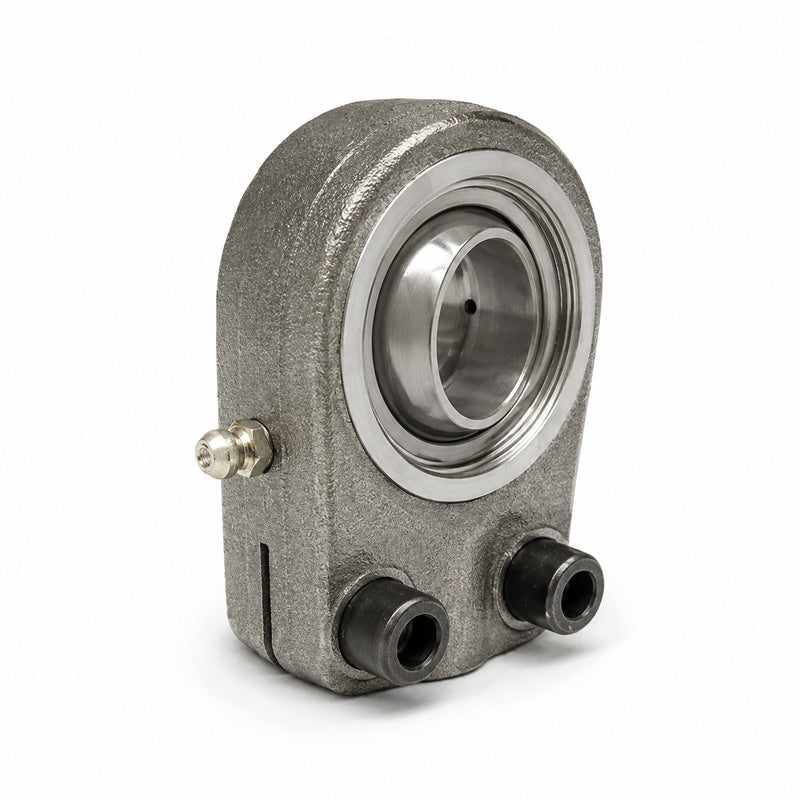

Durbal DGIHR-K35DO Maintenance Required Right Hand Hydraulic Rod End with Slot and Clamping Arrangement M28x1.5 Thread

DURBAL Maintenance Required Female Hydraulic-Rod Ends with Pressed Spherical-Plain Bearing and (Slot and Clamping Arrangement): Threaded female hydraulic rod end consisting of a forged, heat-treated steel housing with a steel, hardened, ground, phosphated outer ring with single split, oil groove and drill holes and a steel joint ball. Used for alternating radial loads and for minimum linkage distances with maximum stroke utilisation. Female thread with slot, clamping arrangement. All rod ends can be greased subsequently by means of a conical grease nipple. Hydraulic rod ends are fixed as standard with maintenance required DGE_ES radial-spherical-plain bearings and fixed with retaining rings. Temperature range -40 deg C to +200 deg C.

Brand / Quality:

Durbal - High Quality

Thread Size:

M28x1.5

Thread M / F:

Female

Thread Direction:

Right Hand

Inside Diameter:

35mm
