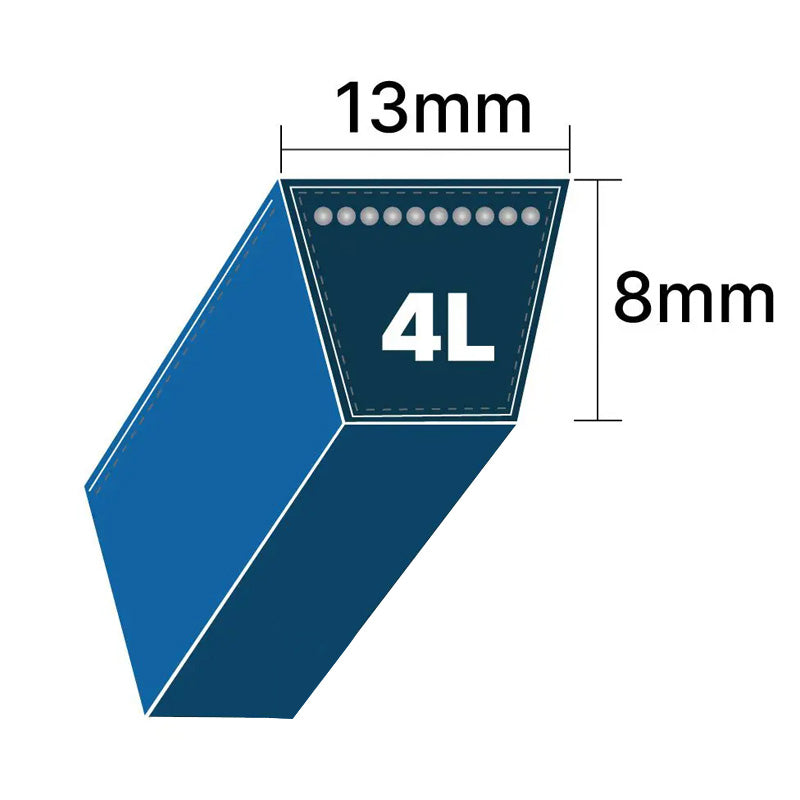

DRY-4L1070K 4L Section 13x8mm Blue Cotton Dry Cover Kevlar Re-inforced Mower Wrapped V-Belt

4L Section Mower Belts: Wrapped V-Belts with a coloured dry cotton cover, the belts have a large diameter of ARAMID (Kevlar) cords, impregnated with special compound which eliminates the need for re-tensioning and offers
High Tensile Strength along with non-extensibility and a high resistance to shock loads.
The belts are covered with a double wrap of special fabric to ensure high resistance to wear and tear and reduced slippage while clutching.
Manufactured as part of an extensive range of specially constructed belts tested and approved to suit many OEM specific applications with attractive aesthetic qualities - coloured "dry cotton" - type wrap is synonymous with the belts used by major quality OEM machine manufacturers.
Belt Characteristics: Able to withstand a high level of reverse flexing - usually associated with "serpentine" drives, and external idler placement - High resistance to oil, heat and cracking.
Also available in standard sections - also 3L and 5L sections.

Equivalent: Ref LGWH9118: Suitable for Manufacturers Wheel Horse Machine Applications: Blade Drive - 548MS 48" Side Discharge OEM Ref: 1594 DC4L1070K DRYB4L1070K DRY4L1070K XDV48X1070

Brand / Quality:

Major Brand - High Quality

Belt Number:

DRY-4L1070K

Outside Length Approx:

107 inch = 2718mm

Belt Width Approx:

13mm

Belt Depth Approx:

8mm
