SKU: E35-KLL-INA

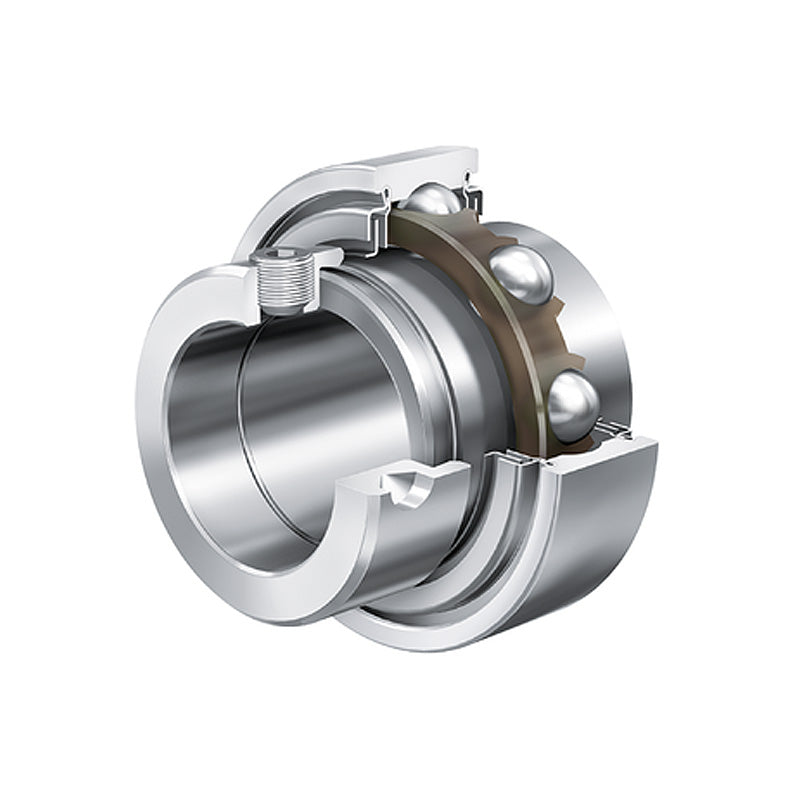

INA E35XLKLL Metric Parallel Outer Bearing Insert with L Seals and Eccentric Collar 35x72x51.3mm
INA E35XLKLL Metric Parallel Outer Bearing Insert with L Seals and Eccentric Collar 35x72x51.3mm
Regular price
CHF 58.30
ex VAT
Regular price
Sale price
CHF 58.30
ex VAT
In stock
Price Break
10+
CHF 51.89
19+
CHF 48.97
29+
CHF 48.39
39+
CHF 47.81
49+
CHF 47.22
74+
CHF 46.64
99+
CHF 43.73
199+
CHF 43.14
249+
CHF 42.56
499+
CHF 41.98
999+
CHF 40.81
Couldn't load pickup availability
Description
Description
|
INA E..-KLL Series Inserts: Bearing insert with parallel outer race, L seals and eccentric collar. These radial insert ball bearings are located on the shaft by means of a locking collar. They are particularly suitable for bearing arrangements with a constant direction of rotation, or under low speed and load, for an alternating direction of rotation. The inner rings and locking collar have a Corrotect® coating and are thus protected against fretting corrosion. Operating temperature range: -20 deg C to +120 deg C. Benefits: Corrotect® coated to protect against fretting corrosion. |
- Brand / Quality:
- INA - High Quality
- Inside Diameter:
- 35mm
- Outside Diameter:
- 72mm
- Width:
- 51.3mm
- Type:
- Parallel Outer
Technical
Technical
| d | 35mm |
|---|---|
| D | 72mm |
| B1 | 51.3mm |
| B | 37.7mm |
| C | 19mm |
| C2 | 25.4mm |
| D1 | 60.3mm |
| d1 | 46.8mm |
| d3 max | 51mm |
| S | 18.8mm |
| W | 5mm |
| Dynamic load Cr | 25500 N |
| Static load C0r | 15300 N |
| Weight | 0.56 kg |
