SKU: E35-KRR-B-INA

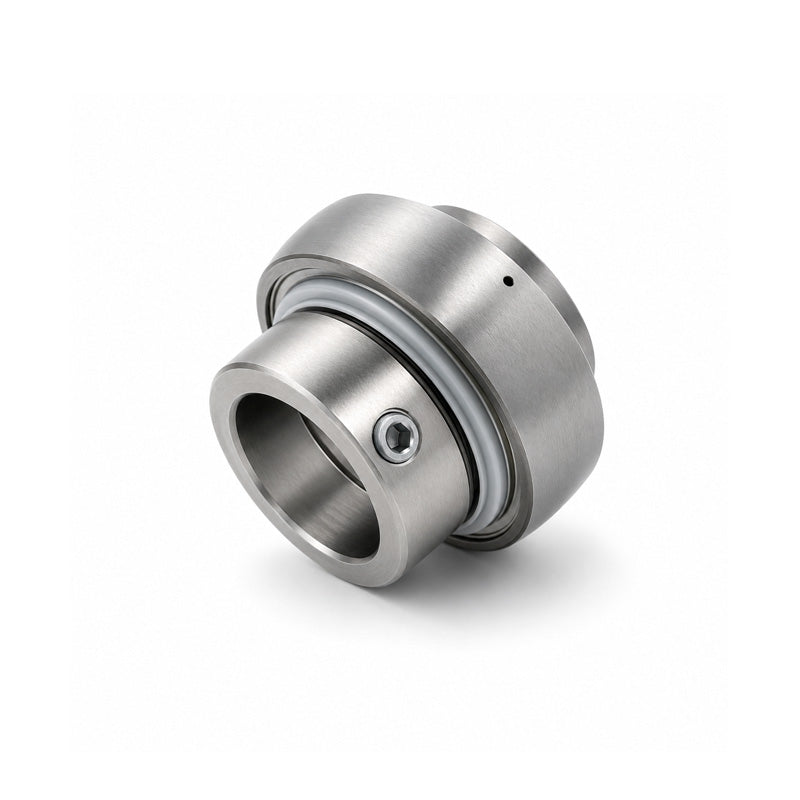

INA E35XLKRRB Metric Spherical Outer Bearing Insert with R Seals and Eccentric Collar 35x72x51.3mm
INA E35XLKRRB Metric Spherical Outer Bearing Insert with R Seals and Eccentric Collar 35x72x51.3mm
Regular price
CHF 42.00
ex VAT
Regular price
Sale price
CHF 42.00
ex VAT
In stock
Price Break
3+
CHF 32.78
5+
CHF 30.94
10+
CHF 30.57
15+
CHF 30.20
20+
CHF 29.83
30+
CHF 29.46
40+
CHF 27.62
50+
CHF 27.25
60+
CHF 26.89
75+
CHF 26.52
100+
CHF 25.78
Description
Description
|
INA E..KRR-B Series Inserts: Bearing insert with spherical outer race, R seals and eccentric locking collar. These radial insert ball bearings are located on the shaft by means of a locking collar. They are particularly suitable for bearing arrangements with a constant direction of rotation, or under low speed and load, for an alternating direction of rotation. The inner rings and locking collar have a Corrotect® coating and are thus protected against fretting corrosion. Operating temperature range: -20 deg C to +120 deg C. Benefits: Compensation of misalignment. |
- Brand / Quality:
- INA - High Quality
- Inside Diameter:
- 35mm
- Outside Diameter:
- 72mm
- Width:
- 51.3mm
Technical
Technical
| d | 35mm |
|---|---|
| Dsp | 72mm |
| B1 | 51.3mm |
| B | 37.7mm |
| C | 19mm |
| C2 | 22.5mm |
| D1 | 60.3mm |
| d1 | 46.8mm |
| d3 max | 51mm |
| S | 18.8mm |
| W | 5mm |
| Dynamic load Cr | 25500 N |
| Static load C0r | 15300 N |
| Weight | 0.55 kg |
