SKU: E70-KRR-INA
INA E70XLKRR Metric Parallel Outer Bearing Insert with R Seals and Eccentric Collar 70x125x66mm
INA E70XLKRR Metric Parallel Outer Bearing Insert with R Seals and Eccentric Collar 70x125x66mm
Regular price
CHF 179.39
ex VAT
Regular price
Sale price
CHF 179.39
ex VAT
In stock
Price Break
10+
CHF 159.66
19+
CHF 150.69
29+
CHF 148.89
39+
CHF 147.10
49+
CHF 145.31
74+
CHF 143.51
99+
CHF 134.54
199+
CHF 132.75
249+
CHF 130.95
499+
CHF 129.16
999+
CHF 125.57
Couldn't load pickup availability
Description
Description
|

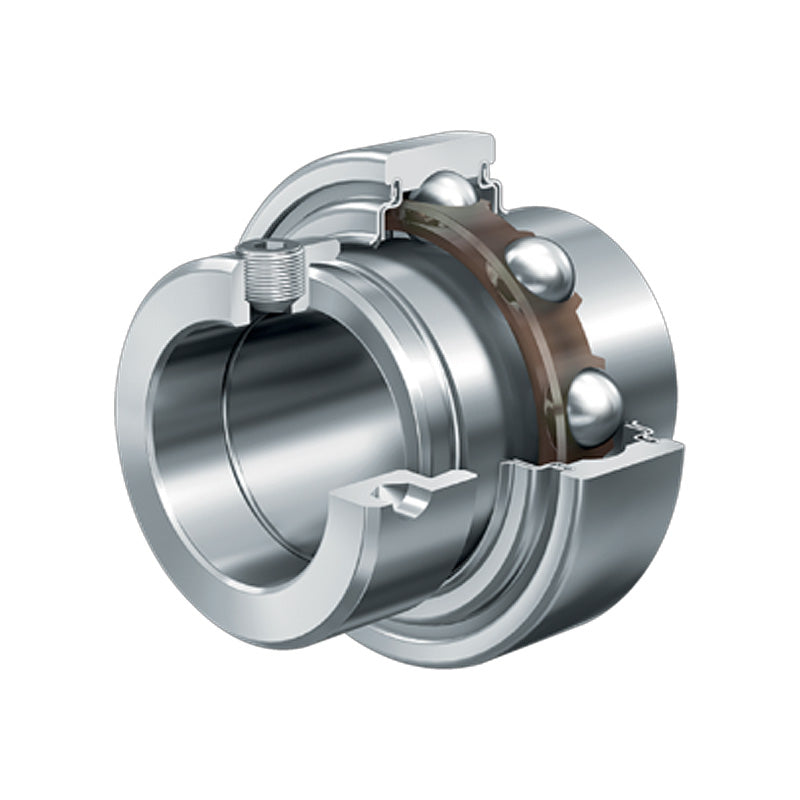

INA E..-KRR Series Inserts: Bearing insert with parallel outer race, R seals and eccentric collar. These radial insert ball bearings are located on the shaft by means of a locking collar. They are particularly suitable for bearing arrangements with a constant direction of rotation, or under low speed and load, for an alternating direction of rotation. The inner rings and locking collar have a Corrotect® coating and are thus protected against fretting corrosion. Operating temperature range: -20 deg C to +120 deg C. Benefits: Corrotect® coated to protect against fretting corrosion. |
- Brand / Quality:
- INA - High Quality
- Inside Diameter:
- 70mm
- Outside Diameter:
- 125mm
- Width:
- 66mm
- Type:
- Parallel Outer
Technical
Technical
| d | 70mm |
|---|---|
| D | 125mm |
| B1 | 66mm |
| B | 48.5mm |
| C | 28mm |
| C2 | 32mm |
| D1 | 109mm |
| d1 | 85.2mm |
| d3 max | 96mm |
| S | 21.5mm |
| W | 6mm |
| Dynamic load Cr | 62000 N |
| Static load C0r | 44000 N |
| Weight | 2.45 kg |
