SKU: EA10-FLURO

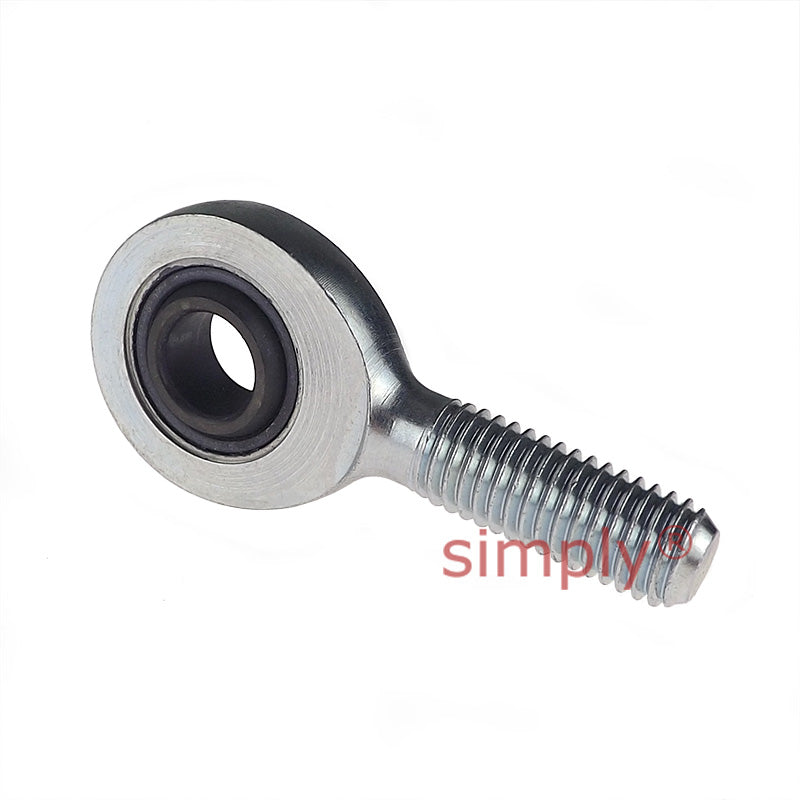

Fluro EA10 Right Hand Zinc Plated Steel / Steel Male Plain Rod End M10 Thread

Name: Fluro EA10 Right Hand Zinc Plated Steel / Steel Male Plain Rod End M10 Thread
Brand: Fluro
SKU: EA10-FLURO
Price: 20.00 CHF
Availability: InStock

CHF 20.00 ex VAT

Sale Sold out

In stock

Price Break

3+ CHF 15.35

5+ CHF 14.48

9+ CHF 14.31

19+ CHF 14.14

49+ CHF 13.97

74+ CHF 13.79

99+ CHF 12.93

199+ CHF 12.76

249+ CHF 12.59

499+ CHF 12.42

999+ CHF 12.07

Request Quotation

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More

Description

Fluro EA (-2RS) Series Zinc Plated Steel Maintenance Required Male Plain Rod Ends: Rod Ends with male thread made from free-cutting or heat-treated steel zinc plated, with steel on steel Spherical Plain Bearings which require lubrication. For use at high multidirectional loads and limited fitting dimensions
Benefits: Grease nipple for easy re-greasing

Brand / Quality:: Fluro - High Quality
Thread Size:: M10
Thread M / F:: Male
Thread Direction:: Right Hand
Thread Length:: 10mm
Inside Diameter:: 10mm
Material:: Steel / Steel

Technical

Bore Size D	10mm
B	9mm
M	7mm
A	28mm
F	48mm
L	62mm
O	13.2mm
Thread Size G	M10
GL	26mm
Static Load Co	19.9kN
Dynamic Load	8.1kN
Approx weight	0.05kg
