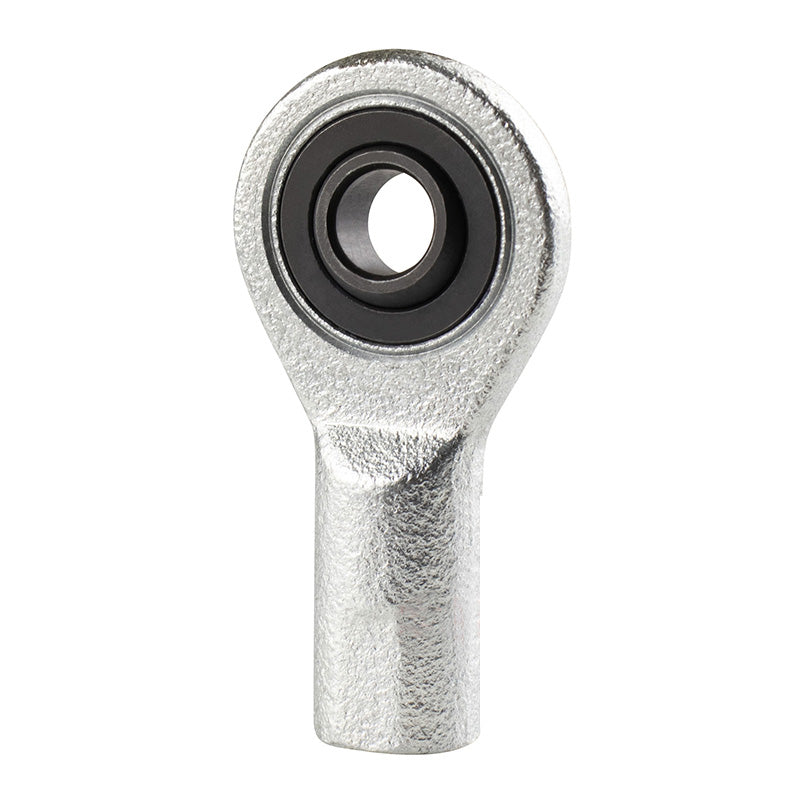

Durbal EFN15-20-501 Maintenance Required Right Hand Metric Steel Female Rod End M14 Thread

DURBAL Heavy-Duty Maintenance Required Female Rod Ends with Pressed Spherical-Plain Bearing: Threaded female rod end consisting of a galvanised, tempered, forged steel housing with a steel, hardened, ground, phospated outer ring with oil groove and drill holes and a steel joint ball (Outer ring has a single split from size 15). Primary application in situations of alternating stresses or impact loads and preferred in situations of large swivelling movements. Made of forged steel, tempered, extremely high loads resistant and protected against corrosion by galvanisation. Rod ends from size 15 can be greased subsequently by means of a funnel-type lubrication nipple, and from size 20 by means of a conical grease nipple. Connection dimensions in accordance with DIN ISO 8139 for pneumatic cylinders. Temperature range: -40 deg C to +200 deg C.

Brand / Quality:

Durbal - High Quality

Thread Size:

M14

Thread M / F:

Female

Thread Direction:

Right Hand

Inside Diameter:

15mm
