SKU: EGLM-08

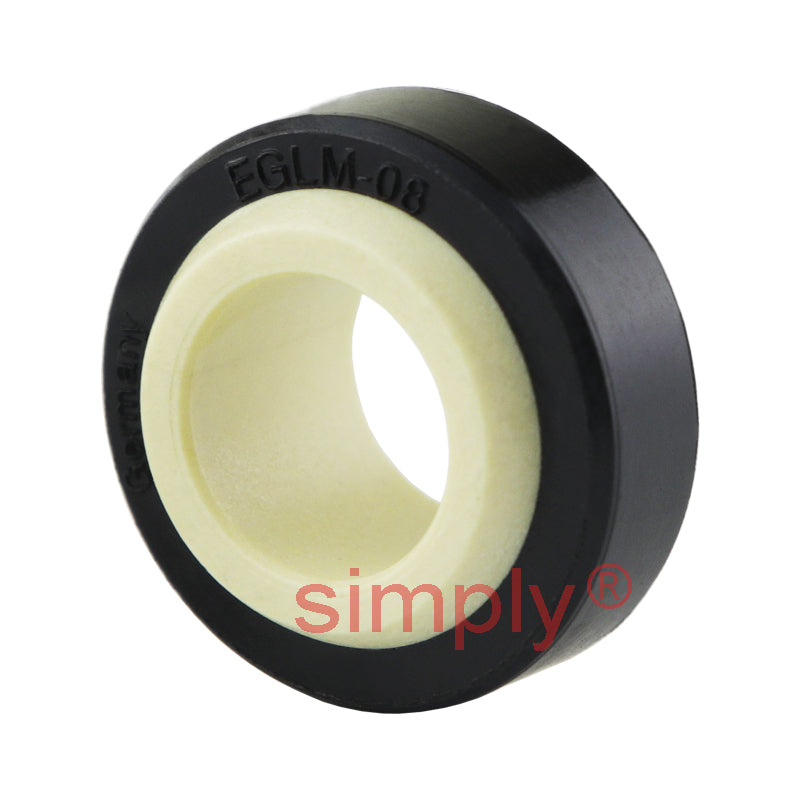

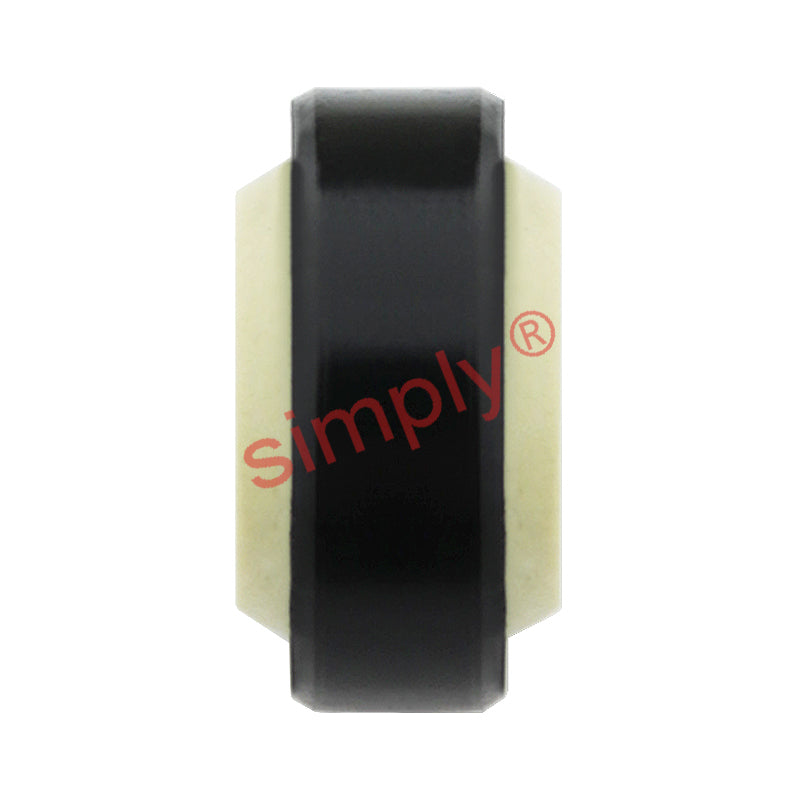

Igus EGLM08 Spherical Plain Bearing 8x16x8mm
Igus EGLM08 Spherical Plain Bearing 8x16x8mm
Regular price
CHF 10.02
ex VAT
Regular price
Sale price
CHF 10.02
ex VAT
In stock
Price Break
10+
CHF 8.92
19+
CHF 8.42
29+
CHF 8.32
39+
CHF 8.22
49+
CHF 8.12
74+
CHF 8.02
99+
CHF 7.52
199+
CHF 7.41
249+
CHF 7.31
499+
CHF 7.21
999+
CHF 7.01
Couldn't load pickup availability
Description
Description
EGLM Spherical Plain Bearings: These bearings are commonly used in the food industry, automotive industry, railway technology or plant construction. These bearings are popular due to the following reasons; high axial and radial loads, easy to install, great chemical resistance, cost-effective and the ability to adjust misalignments.
Benefits: Compensation of misalignment and edge loads, corrosion-resistant, suitable for rotating, oscillating and axial movements.
- Brand / Quality:
- Igus - High Quality
- Inside Diameter:
- 8mm
- Outside Diameter:
- 16mm
- Width:
- 8mm

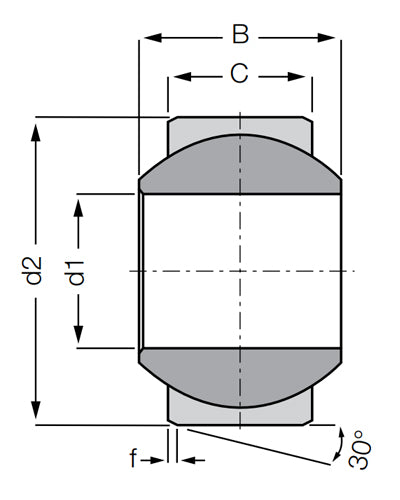

Technical
Technical
| d1 | 8mm |
|---|---|
| d2 | 16mm |
| B | 8mm |
| C | 5mm |
| f | 0.5mm |
| Max Static Compressive Strength (Radial) | 303 lbs |
| Max Static Compressive Strength (Axial) | 39 lbs |
| Max Torque Through Ball | 5.2 ft lbs |
| Max Pivot Angle | 24 deg |
| Weight | 0.001 kg |
