SKU: ESEHE205-SNR

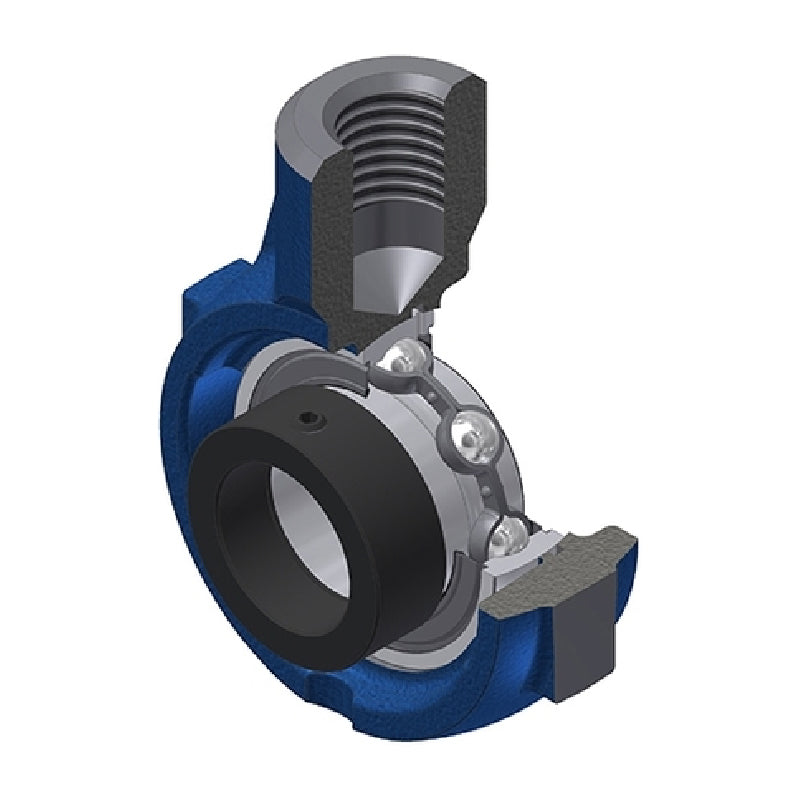

SNR ESEHE205 Metric Cast Iron Hanger Bearing Unit with Eccentric Collar Insert 25mm Bore - Allow 2-3 Days
SNR ESEHE205 Metric Cast Iron Hanger Bearing Unit with Eccentric Collar Insert 25mm Bore - Allow 2-3 Days
Regular price
CHF 29.80
ex VAT
Regular price
Sale price
CHF 29.80
ex VAT
In stock
Price Break
5+
CHF 29.50
10+
CHF 28.31
20+
CHF 27.71
50+
CHF 26.82
100+
CHF 26.22
500+
CHF 24.73
1000+
CHF 20.86
Couldn't load pickup availability
Description
Description
ESEHE200 Series Hanger Units: These bearing units are supplied with a fully sealed bearing insert fitted and include a grease nipple to facilitate lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts can be removed from the housing for future replacement as required.
Benefits: Can be re-lubricated, replaceable bearing insert, grub screw fixing
- Brand / Quality:
- SNR - High Quality
- Inside Diameter:
- 25mm
- Style:
- ESEHE
Technical
Technical
| --- | Dimensions |
|---|---|
| Shaft diameter d | 25mm |
| A | 28mm |
| A2 | 35mm |
| B1 | 30.9mm |
| d1 | 37.4mm |
| E | 22mm |
| H | 70mm |
| L | 99mm |
| L1 | 64mm |
| L3 | 38mm |
| S | 7.5mm |
| G | R1/8″ |
| G1 | M20 |
| --- | Load rating |
| Dynamic load C | 14 kN |
| Static load C0 | 7.88 kN |
| --- | Unit information |
| Operating temperature min. | -20°C |
| Operating temperature max. | 100°C |
| Mass | 0.69 kg |
