SKU: ESEHE206-SNR

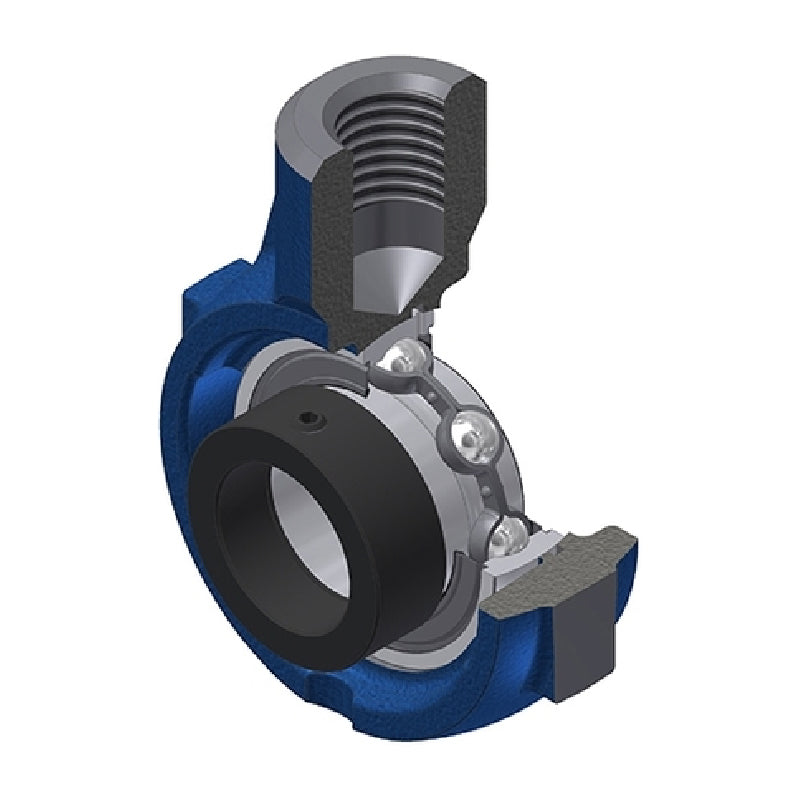

SNR ESEHE206 Metric Cast Iron Hanger Bearing Unit with Eccentric Collar Insert 30mm Bore
SNR ESEHE206 Metric Cast Iron Hanger Bearing Unit with Eccentric Collar Insert 30mm Bore
Regular price
CHF 35.00
ex VAT
Regular price
Sale price
CHF 35.00
ex VAT
In stock
Price Break
3+
CHF 27.17
4+
CHF 25.64
9+
CHF 25.34
19+
CHF 25.03
49+
CHF 24.73
99+
CHF 24.42
499+
CHF 22.90
999+
CHF 22.59
1999+
CHF 22.29
2999+
CHF 21.98
4999+
CHF 21.37
Share this product
Description
Description
ESEHE200 Series Hanger Units: These bearing units are supplied with a fully sealed bearing insert fitted and include a grease nipple to facilitate lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts can be removed from the housing for future replacement as required.
Benefits: Can be re-lubricated, replaceable bearing insert, grub screw fixing
- Brand / Quality:
- SNR - High Quality
- Inside Diameter:
- 30mm
- Style:
- ESEHE
Technical
Technical
| --- | Dimensions |
|---|---|
| Shaft diameter d | 30mm |
| A | 32mm |
| A2 | 40mm |
| B1 | 35.7mm |
| d1 | 44.1mm |
| E | 24mm |
| H | 85mm |
| L | 114mm |
| L1 | 72mm |
| L3 | 40mm |
| S | 9mm |
| G | R1/8″ |
| G1 | M24 |
| --- | Load rating |
| Dynamic load C | 19.5 kN |
| Static load C0 | 11.2 kN |
| --- | Unit information |
| Operating temperature min. | -20°C |
| Operating temperature max. | 100°C |
| Mass | 1.03 kg |
