SKU: ESFL206-SNR

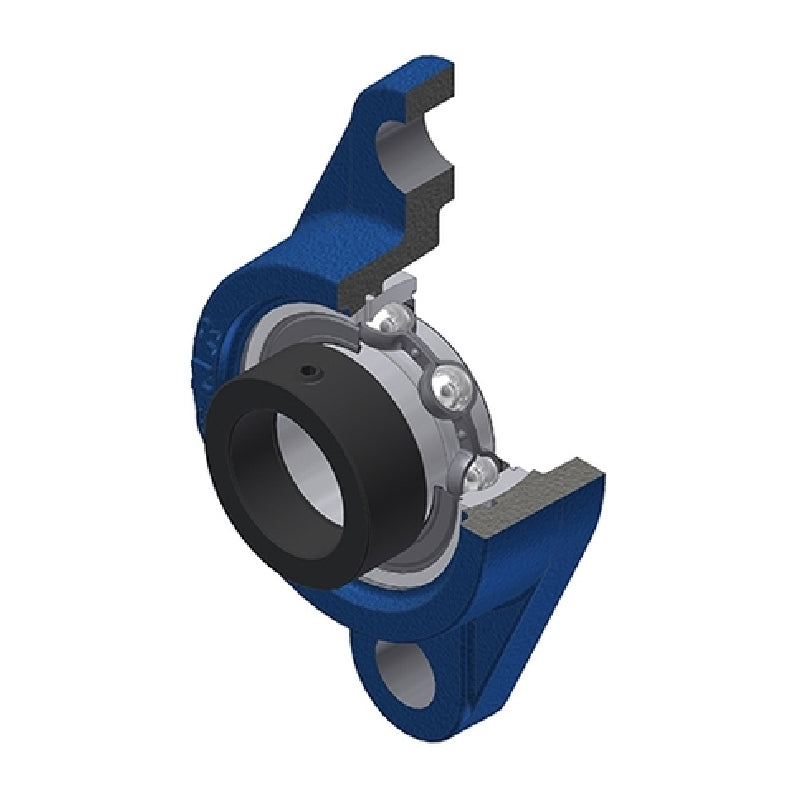

SNR ESFL206 Metric Two Bolt Cast Iron Oval Housing with 30mm Bore Eccentric Collar Insert - Allow 2-3 Days
SNR ESFL206 Metric Two Bolt Cast Iron Oval Housing with 30mm Bore Eccentric Collar Insert - Allow 2-3 Days
Regular price
CHF 34.00
ex VAT
Regular price
Sale price
CHF 34.00
ex VAT
In stock
Price Break
3+
CHF 26.69
4+
CHF 25.19
9+
CHF 24.89
19+
CHF 24.59
49+
CHF 24.29
99+
CHF 23.99
499+
CHF 22.49
999+
CHF 22.19
1999+
CHF 21.89
2999+
CHF 21.59
4999+
CHF 20.99
Share this product
Description
Description
ESFL200 Series 2 Bolt Cast Iron Oval Housings: These bearing units are supplied with a fully sealed bearing insert fitted in the housing and include a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts can be removed from the housings for future replacement as required.
Benefits: Can be re-lubricated, replaceable bearing insert, grub screw fixing
- Brand / Quality:
- SNR - High Quality
- Inside Diameter:
- 30mm
- Style:
- ESFL
- Bolt Hole Centres:
- 117mm
Technical
Technical
| --- | Dimensions |
|---|---|
| Shaft diameter d | 30mm |
| A | 31mm |
| A1 | 13mm |
| A2 | 44.7mm |
| B | 23.8mm |
| B1 | 35.7mm |
| d1 | 44.1mm |
| e | 18mm |
| H | 148mm |
| J | 117mm |
| L | 80mm |
| N | 16mm |
| S | 9mm |
| G | M6x1 |
| --- | Load rating |
| Dynamic load C | 19.5 kN |
| Static load C0 | 11.2 kN |
| --- | Unit information |
| Operating temperature min. | -20°C |
| Operating temperature max. | 100°C |
| Recommended tightening torque for set screw | 11.5 Nm |
| Mass | 0.9 kg |
