SKU: ESFLE204N-SNR

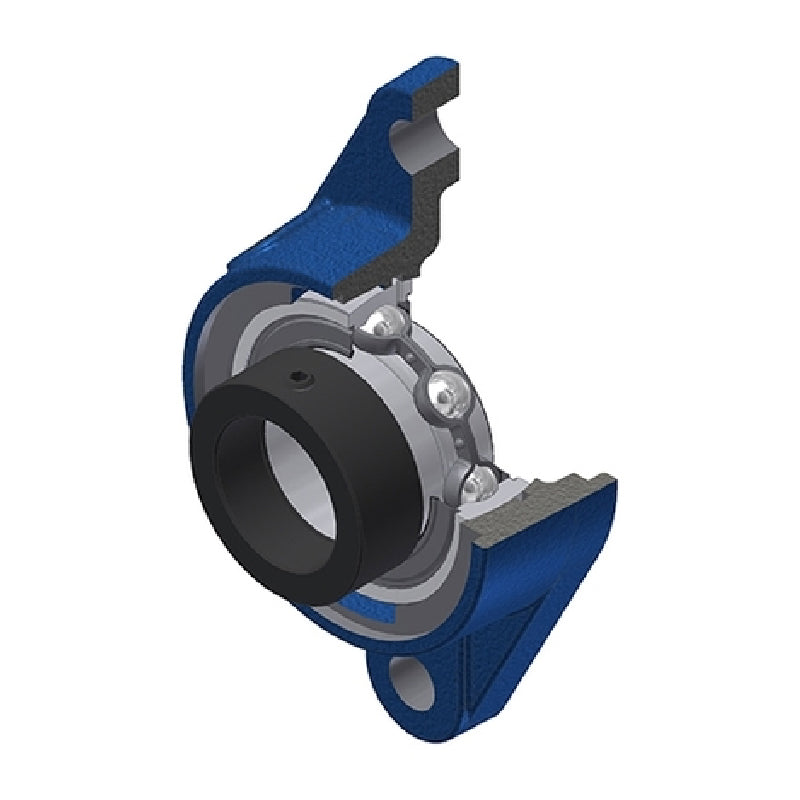

SNR ESFLE204N Metric Two Bolt Cast Iron Oval Housing with 20mm Bore Eccentric Collar Insert - Allow 2-3 Days
SNR ESFLE204N Metric Two Bolt Cast Iron Oval Housing with 20mm Bore Eccentric Collar Insert - Allow 2-3 Days
Regular price
CHF 62.00
ex VAT
Regular price
Sale price
CHF 62.00
ex VAT
In stock
Price Break
3+
CHF 54.81
4+
CHF 52.59
9+
CHF 51.48
19+
CHF 49.82
49+
CHF 48.72
99+
CHF 45.95
499+
CHF 38.75
999+
CHF 0.00
1999+
CHF 0.00
2999+
CHF 0.00
4999+
CHF 0.00
Share this product
Description
Description
ESFLE200 Series 2 Bolt Cast Iron Oval Housings: These bearing units are supplied with a fully sealed bearing insert fitted in the housing and include a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts can be removed from the housings for future replacement as required.
Benefits: Can be re-lubricated, replaceable bearing insert, grub screw fixing
- Brand / Quality:
- SNR - High Quality
- Inside Diameter:
- 20mm
- Style:
- ESFLE
- Bolt Hole Centres:
- 90mm
Technical
Technical
| --- | Dimensions |
|---|---|
| Shaft diameter d | 20mm |
| A | 30.3mm |
| A1 | 10mm |
| A2 | 42.4mm |
| B | 21.4mm |
| B1 | 30.9mm |
| d1 | 32.4mm |
| e | 19mm |
| H | 112mm |
| J | 90mm |
| L | 61mm |
| N | 11.5mm |
| S | 7.5mm |
| G | R1/8″ |
| --- | Load rating |
| Dynamic load C | 12.8 kN |
| Static load C0 | 6.65 kN |
| --- | Unit information |
| Operating temperature min. | -20°C |
| Operating temperature max. | 100°C |
| Recommended tightening torque for set screw | 5.5 Nm |
| Mass | 0.45 kg |
