SKU: ESFTE205-SNR

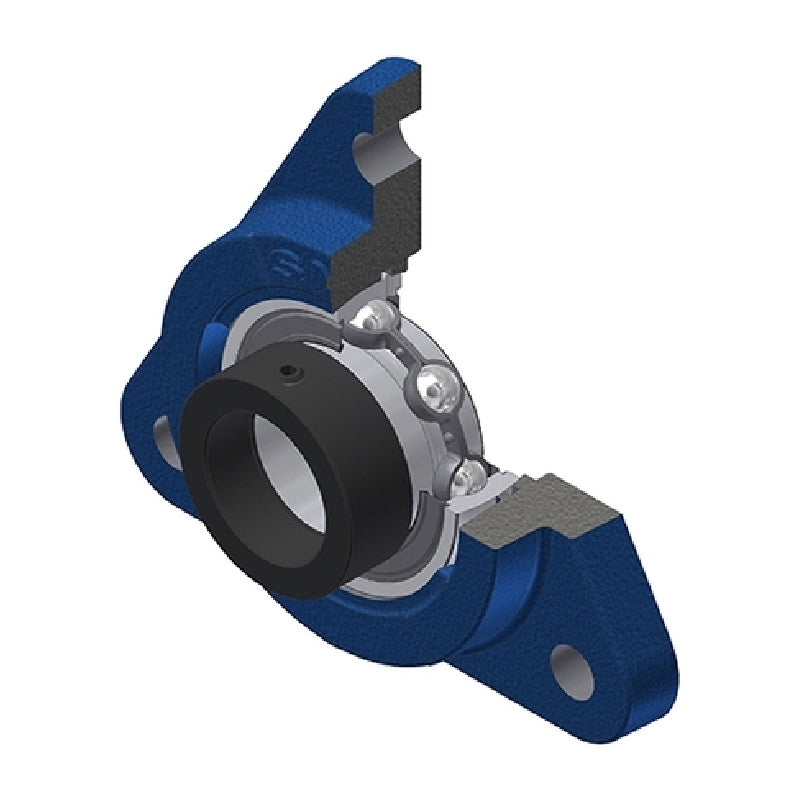

SNR ESFTE205 Metric Three Bolt Cast Iron Triangular Housing Unit with Eccentric Collar Insert 25mm Bore - Allow 2-3 Days
SNR ESFTE205 Metric Three Bolt Cast Iron Triangular Housing Unit with Eccentric Collar Insert 25mm Bore - Allow 2-3 Days
Regular price
CHF 34.81
ex VAT
Regular price
Sale price
CHF 34.81
ex VAT
In stock
Price Break
5+
CHF 34.46
10+
CHF 33.07
20+
CHF 32.37
50+
CHF 31.33
100+
CHF 30.63
500+
CHF 28.89
1000+
CHF 24.37
Couldn't load pickup availability
Description
Description
ESFTE200 Series 3 Bolt Cast Iron Triangular Housings: These bearing units are supplied with a fully sealed bearing insert fitted in the housing and include a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts can be removed from the housings for future replacement as required.
Benefits: Can be re-lubricated, replaceable bearing insert, grub screw fixing
- Brand / Quality:
- SNR - High Quality
- Inside Diameter:
- 25mm
- Style:
- ESFTE
- Bolt Hole Centres:
- 96mm
Technical
Technical
| --- | Dimensions |
|---|---|
| Shaft diameter d | 25mm |
| A | 22mm |
| A1 | 12mm |
| A2 | 36mm |
| B | 21.4mm |
| B1 | 30.9mm |
| d1 | 37.4mm |
| e | 12.6mm |
| H | 97mm |
| H1 | 36mm |
| J | 96mm |
| N | 11mm |
| S | 7.5mm |
| G | R1/8″ |
| --- | Load rating |
| Dynamic load C | 14 kN |
| Static load C0 | 7.88 kN |
| --- | Unit information |
| Operating temperature min. | -20°C |
| Operating temperature max. | 100°C |
| Recommended tightening torque for set screw | 5.5 Nm |
| Mass | 0.59 kg |
