SKU: ESP204-12-SNR
SNR ESP204-12 Imperial Cast Iron Two Bolt Pillow / Plummer Block Housing with 3/4 inch Eccentric Collar Insert - Allow 2-3 Days
SNR ESP204-12 Imperial Cast Iron Two Bolt Pillow / Plummer Block Housing with 3/4 inch Eccentric Collar Insert - Allow 2-3 Days
Regular price
CHF 26.00
ex VAT
Regular price
Sale price
CHF 26.00
ex VAT
In stock
Price Break
3+
CHF 20.02
4+
CHF 18.89
9+
CHF 18.67
19+
CHF 18.44
49+
CHF 18.22
99+
CHF 17.99
499+
CHF 16.87
999+
CHF 16.64
1999+
CHF 16.42
2999+
CHF 16.19
4999+
CHF 15.74
Share this product
Description
Description

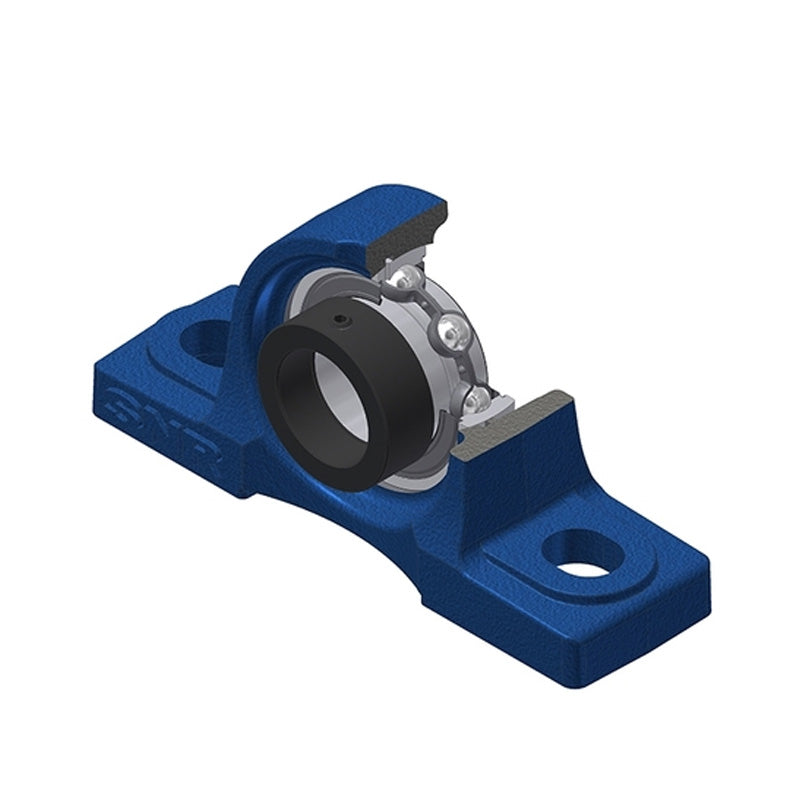

ESP200 Series 2 Bolt Cast Iron Pillow Block Housings: These bearing units are supplied with a fully sealed bearing insert fitted in the housing and include a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts can be removed from the housings for future replacement as required.
Benefits: Can be re-lubricated, replaceable bearing insert, grub screw fixing
- Brand / Quality:
- SNR - High Quality
- Inside Diameter:
- 19.05mm = 0.75 (3/4) inch
- Style:
- ESP
- Bolt Hole Centres:
- 95mm
Technical
Technical

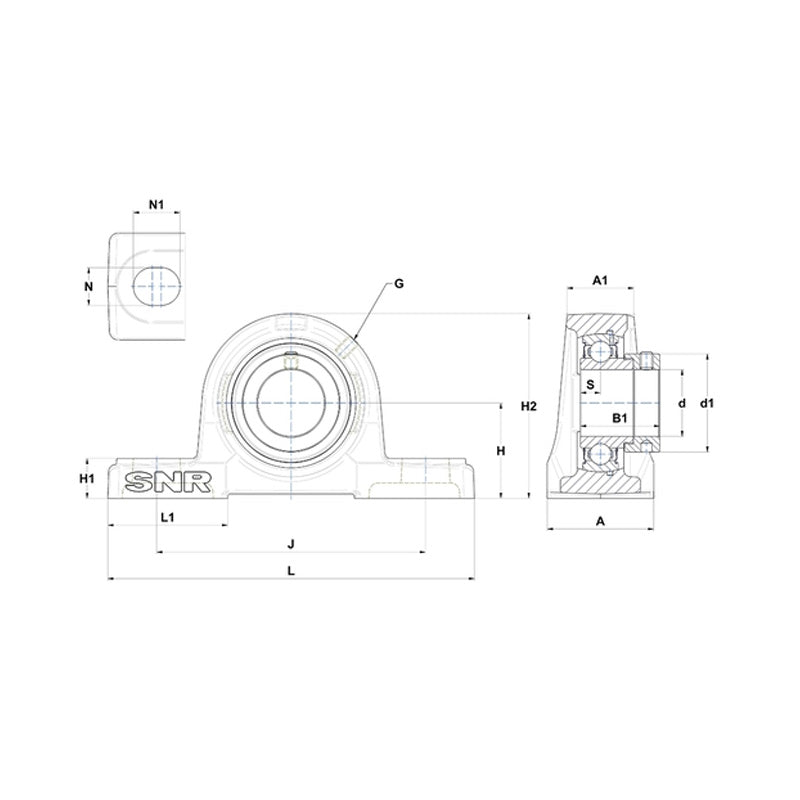

| --- | Dimensions |
|---|---|
| Shaft diameter d | 3/4 inch |
| A | 38mm |
| A1 | 22mm |
| B | 21.4mm |
| d1 | 32.4mm |
| H | 33.3mm |
| H1 | 15mm |
| H2 | 65mm |
| J | 95mm |
| L | 127mm |
| L1 | 42mm |
| N | 13mm |
| N1 | 19mm |
| S | 7.5mm |
| G | M6x1 |
| --- | Load rating |
| Dynamic load C | 12.8 kN |
| Static load C0 | 6.65 kN |
| --- | Unit information |
| Operating temperature min. | -20°C |
| Operating temperature max. | 100°C |
| Recommended tightening torque for set screw | 3.7 Nm |
| Mass | 0.65 kg |
