SKU: ESPA208-SNR
SNR ESPA208 Threaded Base Small Footprint Metric Pillow / Plummer Block Housing with Eccentric Collar Insert 40mm Bore - Allow 2-3 Days
SNR ESPA208 Threaded Base Small Footprint Metric Pillow / Plummer Block Housing with Eccentric Collar Insert 40mm Bore - Allow 2-3 Days
Regular price
CHF 46.00
ex VAT
Regular price
Sale price
CHF 46.00
ex VAT
In stock
Price Break
3+
CHF 36.03
4+
CHF 34.01
9+
CHF 33.60
19+
CHF 33.20
49+
CHF 32.79
99+
CHF 32.39
499+
CHF 30.36
999+
CHF 29.96
1999+
CHF 29.55
2999+
CHF 29.15
4999+
CHF 28.34
Description
Description
|

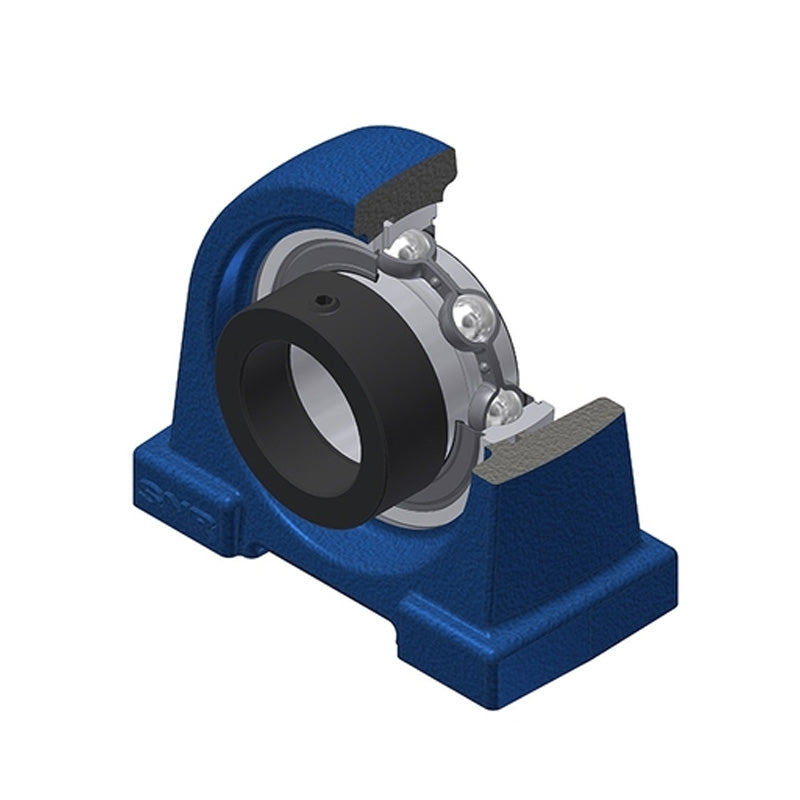

ESPA200 Series Cast Iron Small Footprint Pillow Housing Units: Bearing unit supplied with a fully sealed bearing insert fitted in the threaded base housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required. Benefits: Cost-effective bearing/housing assembly, re-lubricatable, replaceable insert, grub screw fixing, small footprint |
- Brand / Quality:
- SNR - High Quality
- Inside Diameter:
- 40mm
- Style:
- ESPA
- Bolt Hole Centres:
- 84mm
Technical
Technical

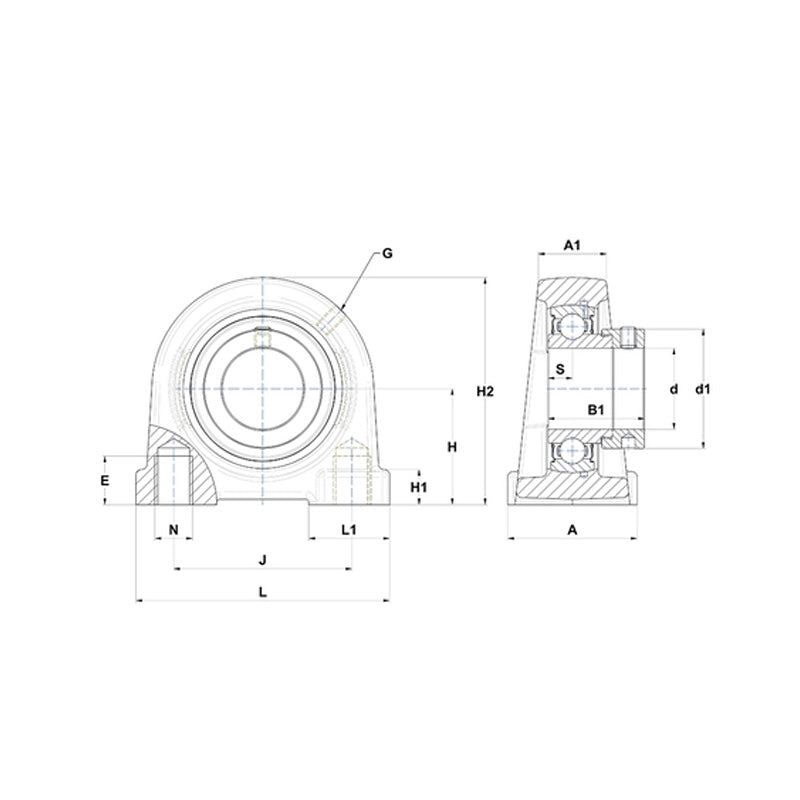

| --- | Dimensions |
|---|---|
| Shaft diameter | 40mm |
| A | 54mm |
| A1 | 28mm |
| B | 30.2mm |
| d1 | 58mm |
| E | 20mm |
| H | 49.2mm |
| H1 | 13mm |
| H2 | 100mm |
| J | 84mm |
| L | 116mm |
| L1 | 32mm |
| N | M14 |
| S | 11mm |
| G | M6x1 |
| --- | Load rating |
| Dynamic load C | 29.6 kN |
| Static load C0 | 18.2 kN |
| Operating temperature min. | -20°C |
| Operating temperature max. | 100°C |
| --- | Unit information |
| Recommended tightening torque for set screw | 11.5 Nm |
| Mass | 1.75 kg |
