SKU: ESPA212-SNR
SNR ESPA212 Threaded Base Small Footprint Metric Pillow / Plummer Block Housing with Eccentric Collar Insert 60mm Bore - Allow 2-3 Days
SNR ESPA212 Threaded Base Small Footprint Metric Pillow / Plummer Block Housing with Eccentric Collar Insert 60mm Bore - Allow 2-3 Days
Regular price
CHF 82.00
ex VAT
Regular price
Sale price
CHF 82.00
ex VAT
In stock
Price Break
3+
CHF 65.01
4+
CHF 61.36
9+
CHF 60.63
19+
CHF 59.89
49+
CHF 59.16
99+
CHF 58.43
499+
CHF 54.78
999+
CHF 54.05
1999+
CHF 53.32
2999+
CHF 52.59
4999+
CHF 51.13
Description
Description
|

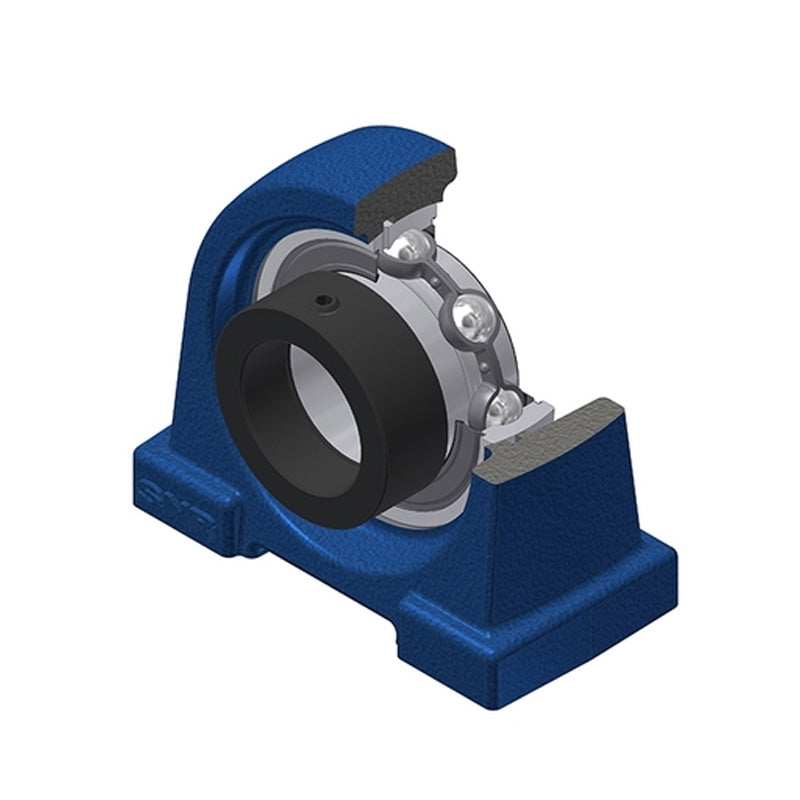

ESPA200 Series Cast Iron Small Footprint Pillow Housing Units: Bearing unit supplied with a fully sealed bearing insert fitted in the threaded base housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required. Benefits: Cost-effective bearing/housing assembly, re-lubricatable, replaceable insert, grub screw fixing, small footprint |
- Brand / Quality:
- SNR - High Quality
- Inside Diameter:
- 60mm
- Style:
- ESPA
- Bolt Hole Centres:
- 114mm
Technical
Technical

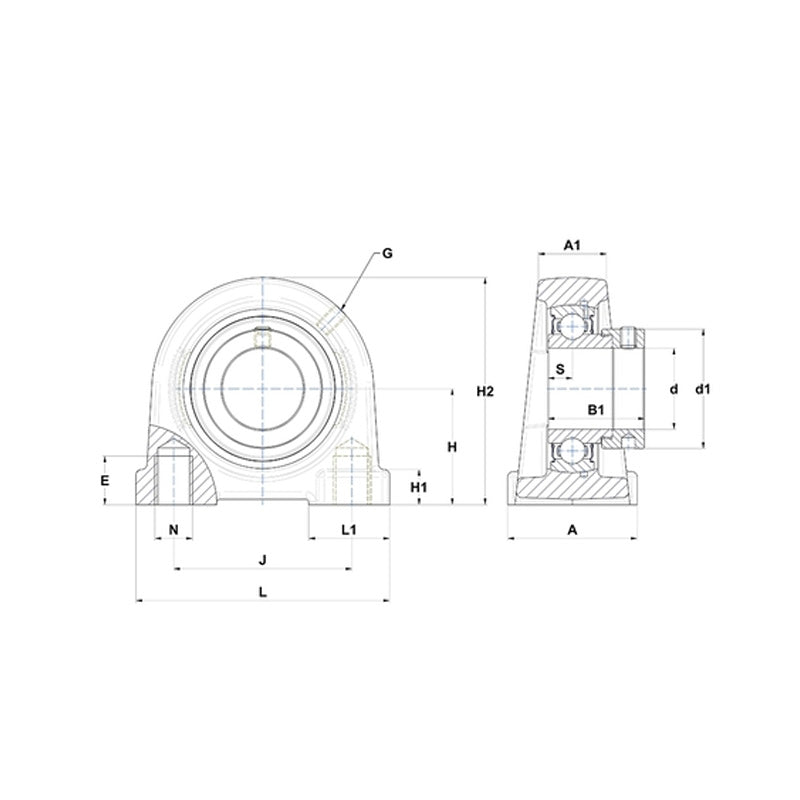

| --- | Dimensions |
|---|---|
| Shaft diameter | 60mm |
| A | 68mm |
| A1 | 36mm |
| B | 33.4mm |
| d1 | 82mm |
| E | 25mm |
| H | 69.9mm |
| H1 | 15mm |
| H2 | 138mm |
| J | 114mm |
| L | 150mm |
| L1 | 52mm |
| N | M16 |
| S | 12mm |
| G | M6x1 |
| --- | Load rating |
| Dynamic load C | 52.5 kN |
| Static load C0 | 32.8 kN |
| Operating temperature min. | -20°C |
| Operating temperature max. | 100°C |
| --- | Unit information |
| Recommended tightening torque for set screw | 22 Nm |
| Mass | 3.9 kg |
