SKU: ESPAE202N-SNR

SNR ESPAE202N Threaded Base Small Footprint Metric Pillow / Plummer Block Housing with Eccentric Collar Insert 15mm Bore - Allow 2-3 Days

SNR ESPAE202N Threaded Base Small Footprint Metric Pillow / Plummer Block Housing with Eccentric Collar Insert 15mm Bore - Allow 2-3 Days
CHF 112.00 ex VAT
CHF 112.00 ex VAT
Sale Sold out

In stock

Price Break
3+ CHF 98.70
4+ CHF 94.72
9+ CHF 92.72
19+ CHF 89.73
49+ CHF 87.74
99+ CHF 82.75
499+ CHF 69.79
999+ CHF 0.00
1999+ CHF 0.00
2999+ CHF 0.00
4999+ CHF 0.00
Request Quotation

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description

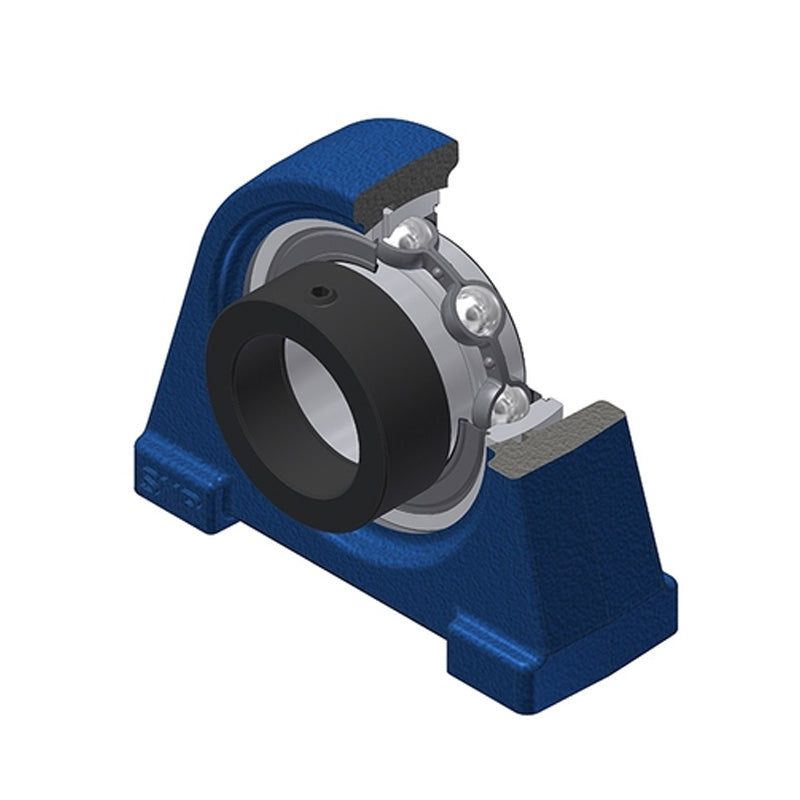

ESPAE200 Series Cast Iron Small Footprint Pillow Housing Units: Bearing unit supplied with a fully sealed bearing insert fitted in the threaded base housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required.
Benefits: Cost-effective bearing/housing assembly, re-lubricatable, replaceable insert, grub screw fixing, small footprint
Brand / Quality:
SNR - High Quality
Inside Diameter:
15mm
Style:
ESPAE
Bolt Hole Centres:
47mm
Technical

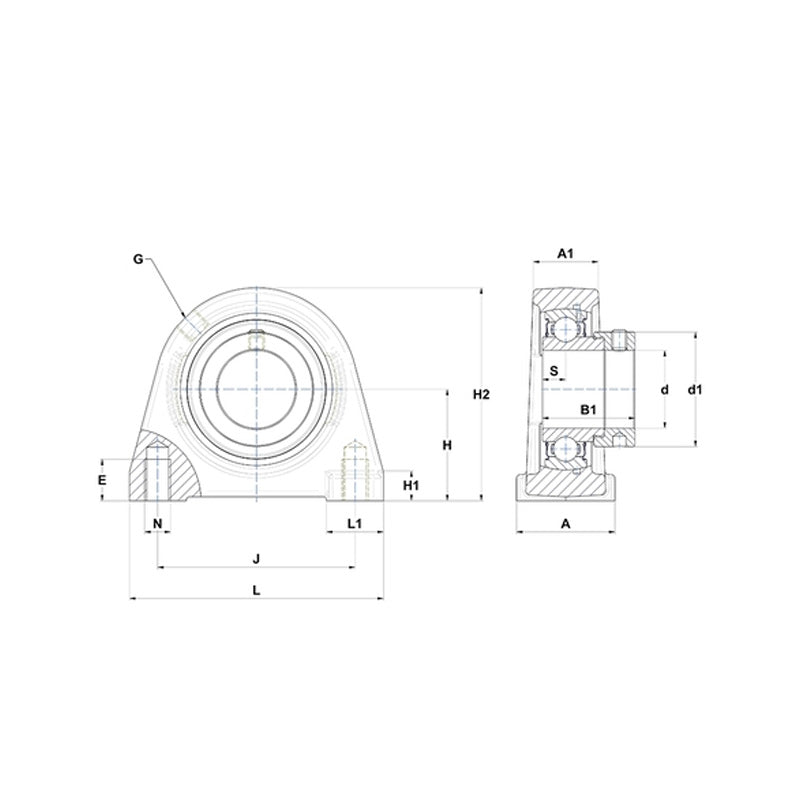

--- Dimensions
Shaft diameter 15mm
A 30mm
A1 18mm
B 19.1mm
d1 27.2mm
E 10mm
H 30.2mm
H1 9mm
H2 57mm
J 47mm
L 63mm
L1 17.5mm
N M8
S 6.5mm
G M6x1
--- Load rating
Dynamic load C 9.55 kN
Static load C0 4.78 kN
Operating temperature min. -20°C
Operating temperature max. 100°C
--- Unit information
Recommended tightening torque for set screw 5.5 Nm
Mass 0.43 kg
