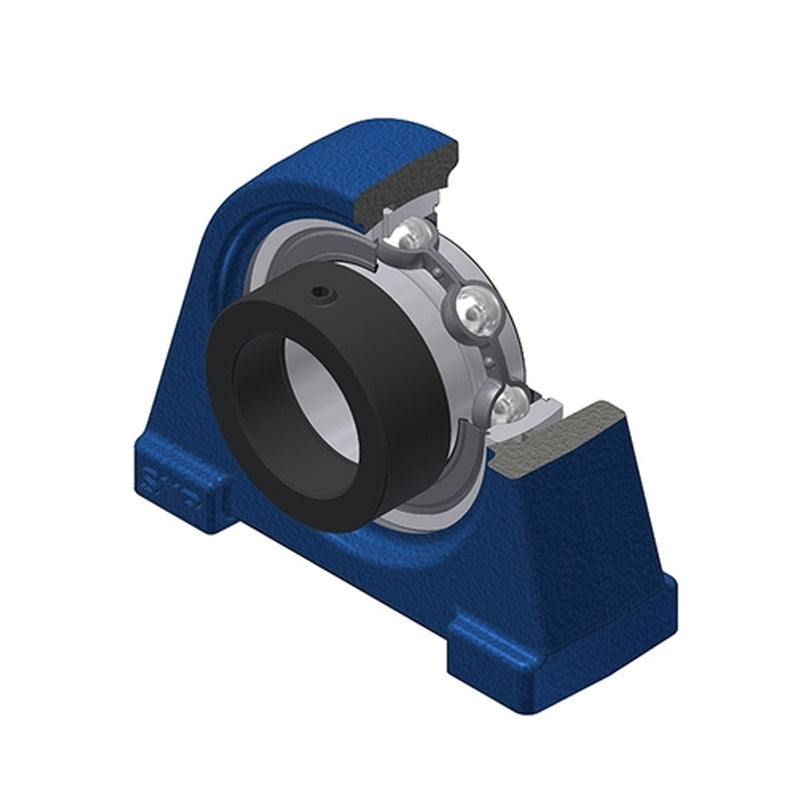

• SNR ESPAE212 Threaded Base Small Footprint Metric Pillow / Plummer Block Housing with Eccentric Collar Insert 60mm Bore - Allow 2-3 Days
  • SNR ESPAE212 Threaded Base Small Footprint Metric Pillow / Plummer Block Housing with Eccentric Collar Insert 60mm Bore - Allow 2-3 Days
1 2

SKU: ESPAE212-SNR

SNR ESPAE212 Threaded Base Small Footprint Metric Pillow / Plummer Block Housing with Eccentric Collar Insert 60mm Bore - Allow 2-3 Days

SNR ESPAE212 Threaded Base Small Footprint Metric Pillow / Plummer Block Housing with Eccentric Collar Insert 60mm Bore - Allow 2-3 Days
CHF 112.00 ex VAT
CHF 112.00 ex VAT
Sale Sold out

In stock

Price Break
3+ CHF 98.77
4+ CHF 94.78
9+ CHF 92.79
19+ CHF 89.79
49+ CHF 87.80
99+ CHF 82.81
499+ CHF 69.84
999+ CHF 0.00
1999+ CHF 0.00
2999+ CHF 0.00
4999+ CHF 0.00
Request Quotation

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
ESPAE200 Series Cast Iron Small Footprint Pillow Housing Units: Bearing unit supplied with a fully sealed bearing insert fitted in the threaded base housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required.
Benefits: Cost-effective bearing/housing assembly, re-lubricatable, replaceable insert, grub screw fixing, small footprint
Brand / Quality:
SNR - High Quality
Inside Diameter:
60mm
Style:
ESPAE
Bolt Hole Centres:
118mm
Technical

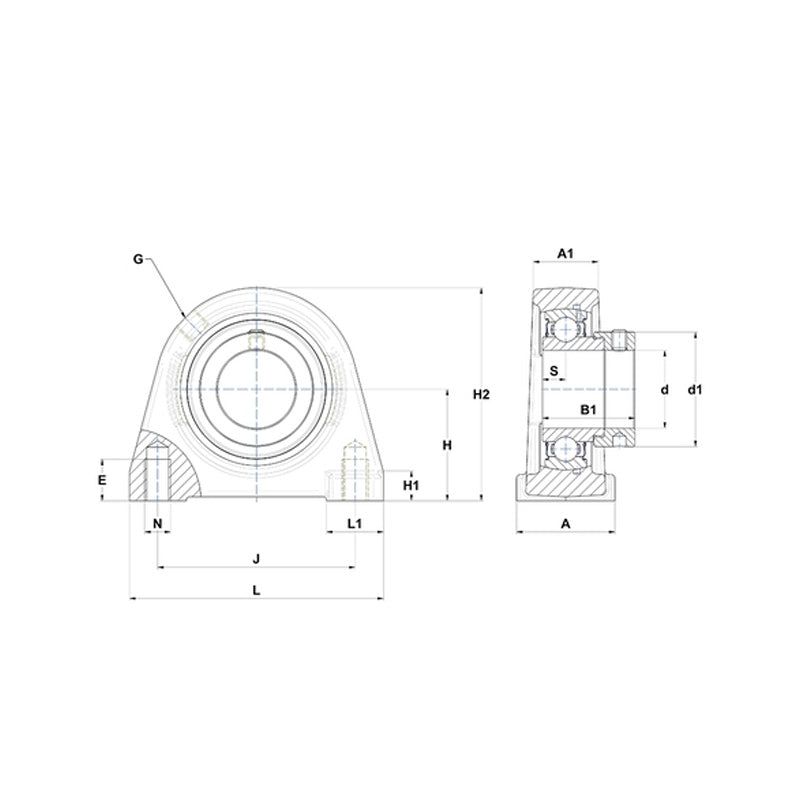

--- Dimensions
Shaft diameter 60mm
A 60mm
A1 42mm
B 33.4mm
d1 82mm
E 20mm
H 69.9mm
H1 16mm
H2 140mm
J 118mm
L 150mm
L1 32mm
N M16
S 12mm
G R1/8"
--- Load rating
Dynamic load C 52.5 kN
Static load C0 32.8 kN
Operating temperature min. -20°C
Operating temperature max. 100°C
--- Unit information
Recommended tightening torque for set screw 22 Nm
Mass 3.9 kg
