SKU: ESPE204N-SNR

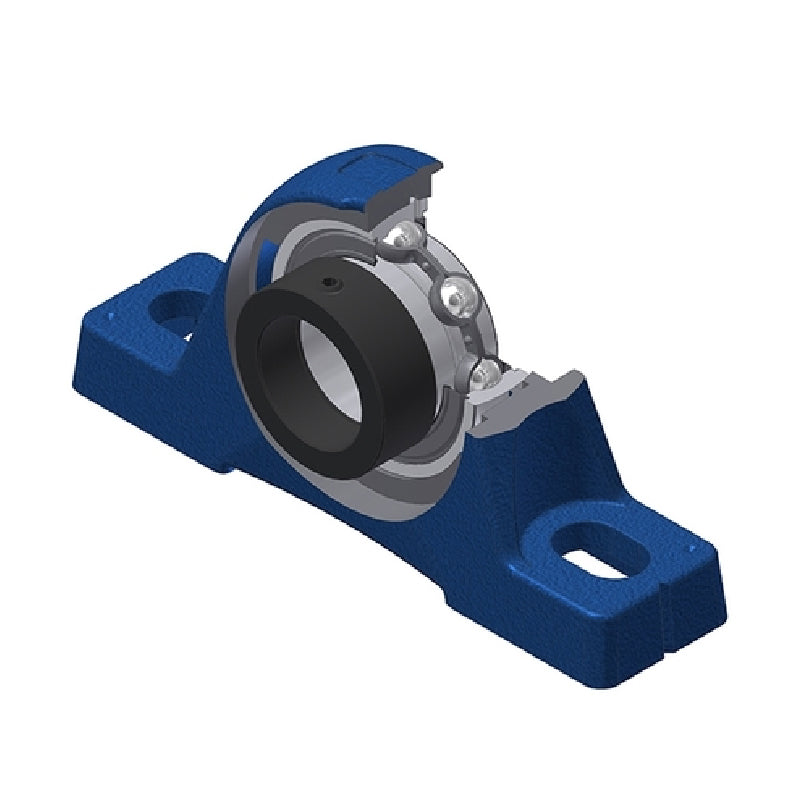

SNR ESPE204N Metric Cast Iron Two Bolt Pillow / Plummer Block Housing with 20mm Eccentric Collar Insert - Allow 2-3 Days
SNR ESPE204N Metric Cast Iron Two Bolt Pillow / Plummer Block Housing with 20mm Eccentric Collar Insert - Allow 2-3 Days
Regular price
CHF 75.00
ex VAT
Regular price
Sale price
CHF 75.00
ex VAT
In stock
Price Break
3+
CHF 65.81
4+
CHF 63.15
9+
CHF 61.82
19+
CHF 59.82
49+
CHF 58.49
99+
CHF 55.17
499+
CHF 46.53
999+
CHF 0.00
1999+
CHF 0.00
2999+
CHF 0.00
4999+
CHF 0.00
Share this product
Description
Description
ESPE200 Series 2 Bolt Cast Iron Pillow Block Housings: These bearing units are supplied with a fully sealed bearing insert fitted in the housing and include a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts can be removed from the housings for future replacement as required.
Benefits: Can be re-lubricated, replaceable bearing insert, grub screw fixing
- Brand / Quality:
- SNR - High Quality
- Inside Diameter:
- 20mm
- Style:
- ESPE
- Bolt Hole Centres:
- 97mm
Technical
Technical
| --- | Dimensions |
|---|---|
| Shaft diameter | 20mm |
| A | 32mm |
| A1 | 19mm |
| B | 21.4mm |
| d1 | 32.4mm |
| H | 33.3mm |
| H1 | 14.5mm |
| H2 | 64mm |
| J | 97mm |
| L | 130mm |
| L1 | 40mm |
| N | 11mm |
| N1 | 19mm |
| S | 7.5mm |
| G | R1/8" |
| --- | Load rating |
| Dynamic load C | 12.8 kN |
| Static load C0 | 6.65 kN |
| --- | Unit information |
| Operating temperature min. | -20°C |
| Operating temperature max. | 100°C |
| Recommended tightening torque for set screw | 5.5 Nm |
| Mass | 0.55 kg |
