SKU: ESPE207N-SNR

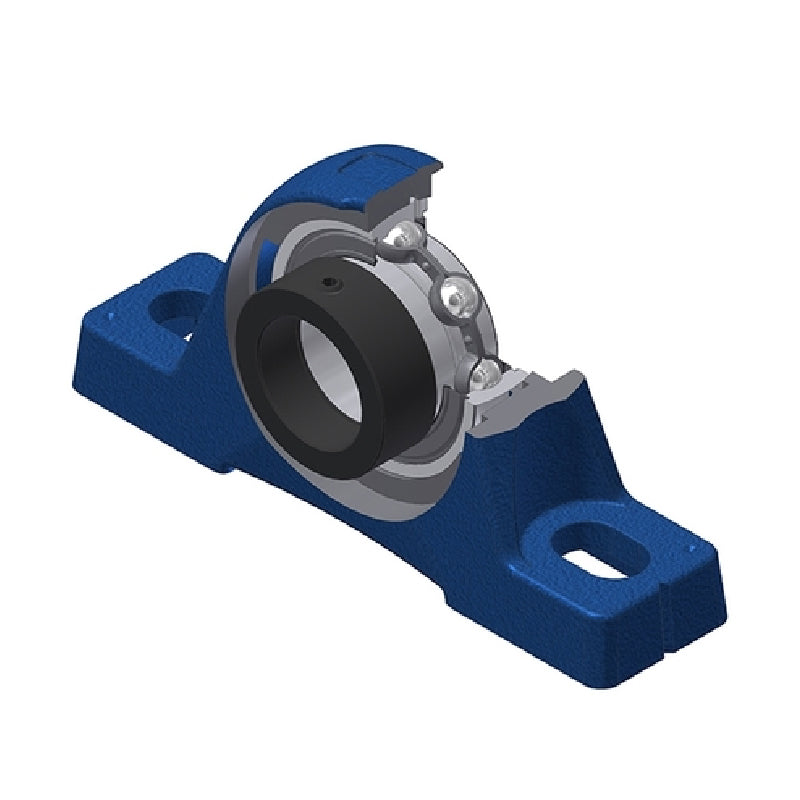

SNR ESPE207N Metric Cast Iron Two Bolt Pillow / Plummer Block Housing with 35mm Eccentric Collar Insert - Allow 2-3 Days

SNR ESPE207N Metric Cast Iron Two Bolt Pillow / Plummer Block Housing with 35mm Eccentric Collar Insert - Allow 2-3 Days
Regular price CHF 45.00 ex VAT
Regular price Sale price CHF 45.00 ex VAT
Sale Sold out

In stock

Price Break
3+ CHF 39.49
4+ CHF 37.90
9+ CHF 37.10
19+ CHF 35.90
49+ CHF 35.10
99+ CHF 33.11
499+ CHF 27.92
999+ CHF 0.00
1999+ CHF 0.00
2999+ CHF 0.00
4999+ CHF 0.00
Quantity
Request Quotation

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Technical
--- Dimensions
Shaft diameter 35mm
A 45mm
A1 27mm
B 25.4mm
d1 51.1mm
H 47.6mm
H1 19mm
H2 93mm
J 126mm
L 163mm
L1 49mm
N 14mm
N1 21mm
S 9.5mm
G R1/8"
--- Load rating
Dynamic load C 25.7 kN
Static load C0 15.2 kN
--- Unit information
Operating temperature min. -20°C
Operating temperature max. 100°C
Recommended tightening torque for set screw 11.5 Nm
Mass 1.5 kg
