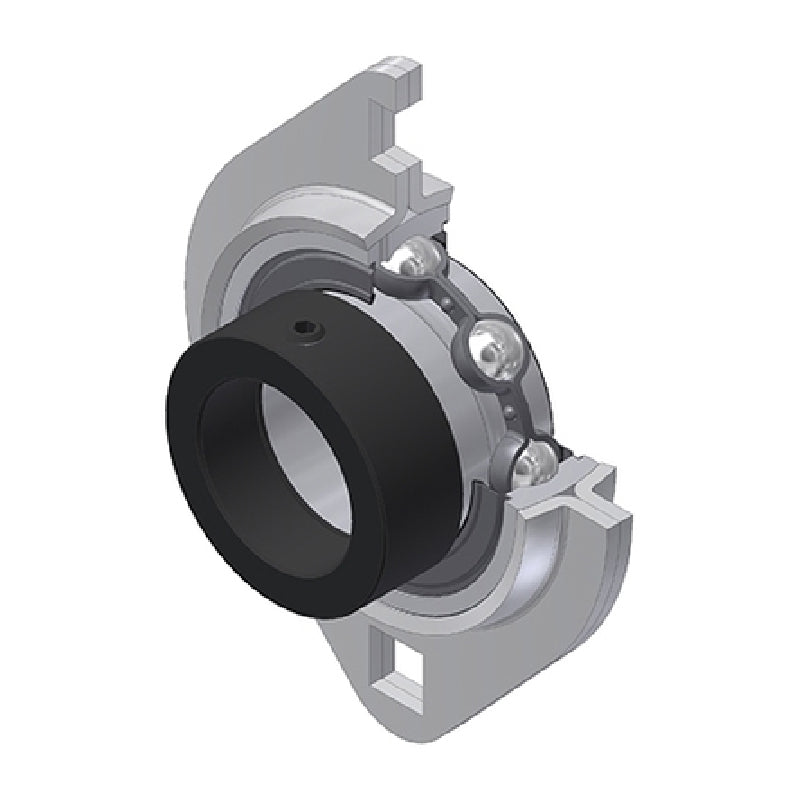

SNR ESPFL208 Metric Two Bolt Oval Pressed Steel Bearing Housing with 40mm Eccentric Collar Insert - Allow 2-3 Days
SNR ESPFL208 Metric Two Bolt Oval Pressed Steel Bearing Housing with 40mm Eccentric Collar Insert - Allow 2-3 Days
Regular price
CHF 35.00
ex VAT
Regular price
Sale price
CHF 35.00
ex VAT
In stock
Price Break
3+
CHF 27.17
4+
CHF 25.64
9+
CHF 25.34
19+
CHF 25.03
49+
CHF 24.73
99+
CHF 24.42
499+
CHF 22.90
999+
CHF 22.59
1999+
CHF 22.29
2999+
CHF 21.98
4999+
CHF 21.37
Share this product
Description
Description
|
2 Bolt Oval Pressed Steel Bearing Housings: Of galvanized steel construction these housings are a simple economical housed bearing solution. Designed for light to medium duty applications they can be bolted to sheet metal frameworks or even timber if required. The supplied sealed bearing insert has grub screws for securing to the shaft. Once assembled the bearing remains rigid in the housing. The inserts are also available separately. |
- Brand / Quality:
- SNR - High Quality
- Inside Diameter:
- 40mm
- Style:
- ESPFL
- Bolt Hole Centres:
- 7mm
Technical
Technical
| --- | Dimensions |
|---|---|
| Shaft diameter d | 40mm |
| A | 11.5mm |
| A1 | 7mm |
| A2 | 32.7mm |
| B | 30.2mm |
| B1 | 43.7mm |
| d1 | 58mm |
| H | 151mm |
| J | 119mm |
| L | 100mm |
| N | 13.5mm |
| S | 11mm |
| --- | Load rating |
| Dynamic load C | 29.6 kN |
| Static load C0 | 18.2 kN |
| --- | Unit information |
| Operating temperature min. | -20°C |
| Operating temperature max. | 100°C |
| Recommended tightening torque for set screw | 11.5 Nm |
| Mass | 1 kg |
