SKU: ESPFT206-SNR

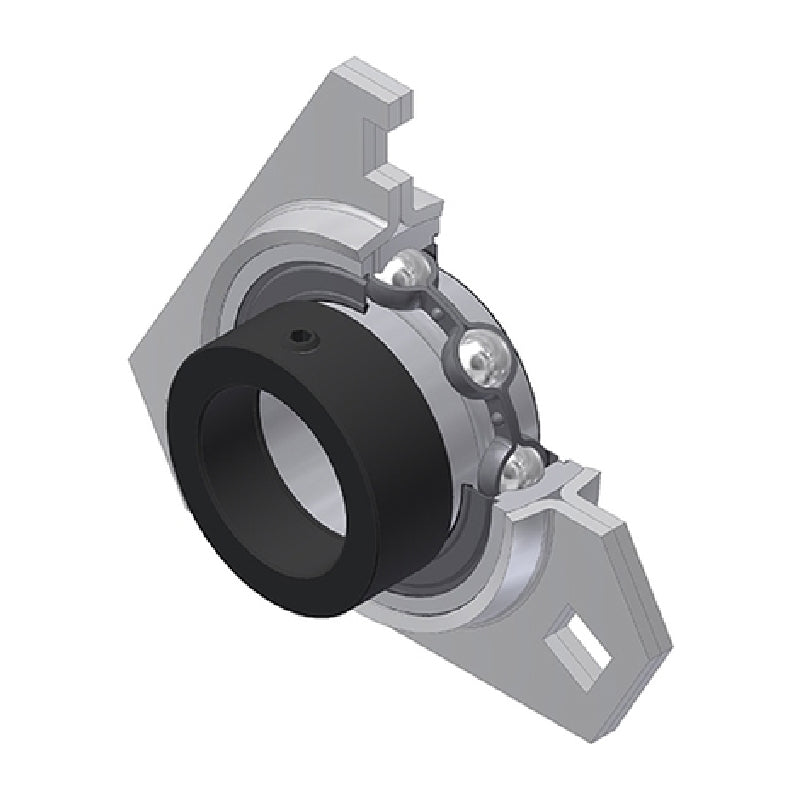

SNR ESPFT206 Metric Pressed Steel 3 Bolt Triangle Flange Housing with 30mm Bore Eccentric Collar Insert - Allow 2-3 Days
SNR ESPFT206 Metric Pressed Steel 3 Bolt Triangle Flange Housing with 30mm Bore Eccentric Collar Insert - Allow 2-3 Days
Regular price
CHF 25.00
ex VAT
Regular price
Sale price
CHF 25.00
ex VAT
In stock
Price Break
3+
CHF 21.94
4+
CHF 21.05
9+
CHF 20.61
19+
CHF 19.94
49+
CHF 19.50
99+
CHF 18.39
499+
CHF 15.51
999+
CHF 0.00
1999+
CHF 0.00
2999+
CHF 0.00
4999+
CHF 0.00
Description
Description
|
ESPFT200 Series 3 Bolt Pressed Steel Triangular Housings: Of galvanized steel construction these housings are a simple economical housed bearing solution. Designed for light to medium-duty applications they can be bolted to sheet metal frameworks or even timber if required. The supplied sealed bearing insert has grub screws for securing the shaft. Once assembled the bearing remains rigid in the housing. The inserts are also available separately. Benefits: Cost-effective bearing/housing assembly, replaceable insert, grub screw fixing |
- Brand / Quality:
- SNR - High Quality
- Inside Diameter:
- 30mm
- Style:
- ESPFT
- Bolt Hole Centres:
- 90.5mm
Technical
Technical
| --- | Dimensions |
|---|---|
| Shaft diameter d | 30mm |
| A | 10.5mm |
| A1 | 5mm |
| A2 | 26.7mm |
| B | 23.8mm |
| B1 | 35.7mm |
| d1 | 44.1mm |
| H | 112.7mm |
| H1 | 40.2mm |
| J | 90.5mm |
| N | 10.5mm |
| S | 9mm |
| --- | Load rating |
| Dynamic load C | 19.5 kN |
| Static load C0 | 11.2 kN |
| --- | Unit information |
| Operating temperature min. | -20°C |
| Operating temperature max. | 100°C |
| Recommended tightening torque for set screw | 11.5 Nm |
| Mass | 0.54 kg |
