SNR ESPLE207 Metric Cast Iron Two Bolt Pillow / Plummer Block Housing with 35mm Eccentric Collar Insert - Allow 2-3 Days
SNR ESPLE207 Metric Cast Iron Two Bolt Pillow / Plummer Block Housing with 35mm Eccentric Collar Insert - Allow 2-3 Days
Regular price
CHF 34.25
ex VAT
Regular price
Sale price
CHF 34.25
ex VAT
In stock
Price Break
10+
CHF 30.48
19+
CHF 28.77
29+
CHF 28.43
39+
CHF 28.09
49+
CHF 27.74
74+
CHF 27.40
99+
CHF 25.69
199+
CHF 25.35
249+
CHF 25.00
499+
CHF 24.66
999+
CHF 23.98
Couldn't load pickup availability
Description
Description

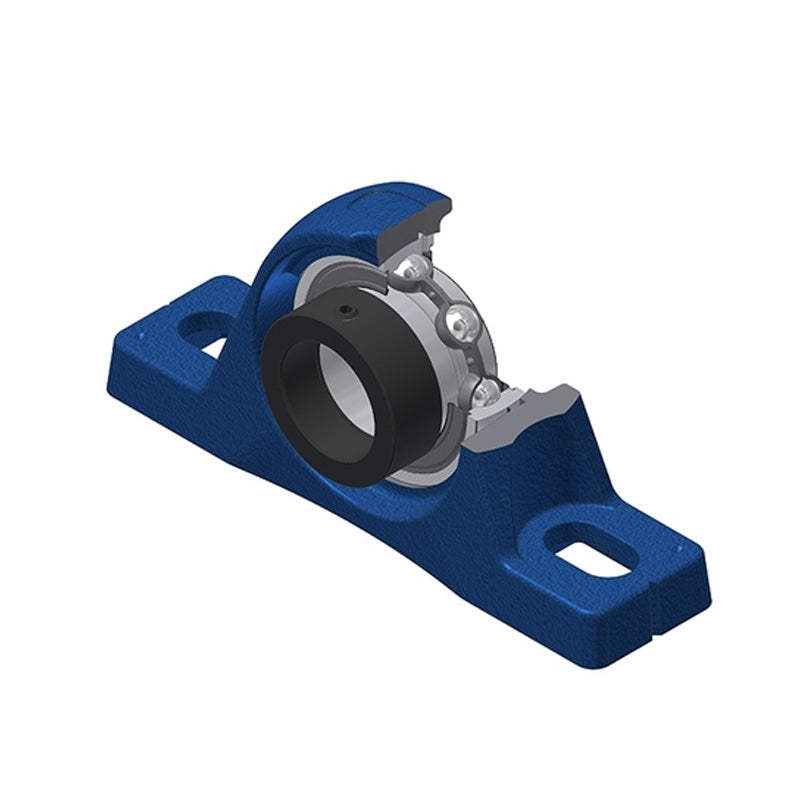

ESPLE200 Series 2 Bolt Cast Iron Pillow Block Housings: These bearing units are supplied with a fully sealed bearing insert fitted in the housing and include a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts can be removed from the housings for future replacement as required.
Benefits: Can be re-lubricated, replaceable bearing insert, grub screw fixing
- Brand / Quality:
- SNR - High Quality
- Inside Diameter:
- 35mm
- Style:
- ESPLE
- Bolt Hole Centres:
- 129mm
Technical
Technical

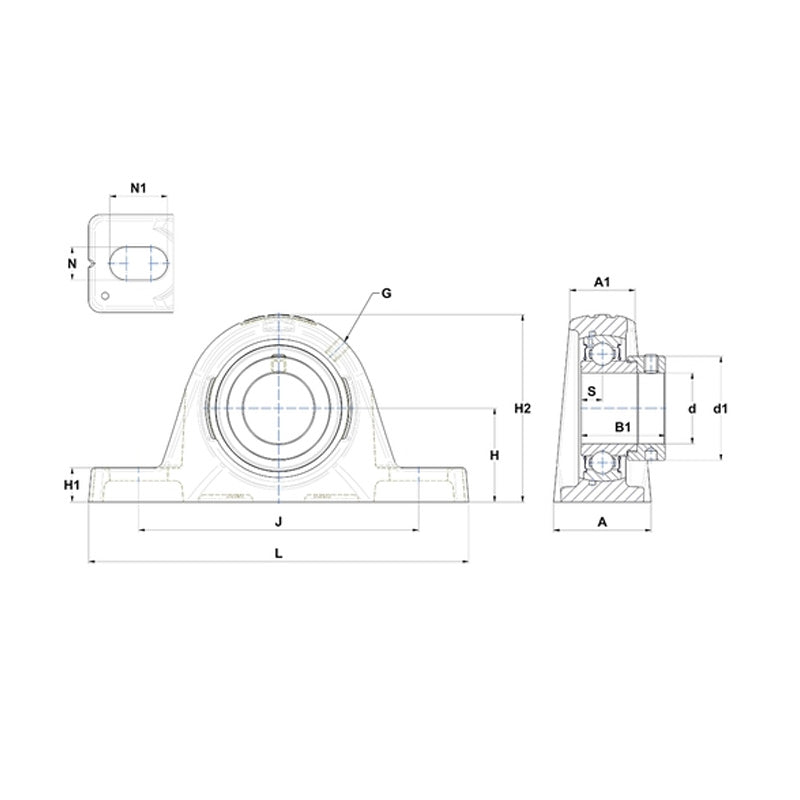

| --- | Dimensions |
|---|---|
| Shaft diameter d | 35mm |
| A | 44.5mm |
| A1 | 30.5mm |
| B | 25.4mm |
| d1 | 51.1mm |
| H | 46.2mm |
| H1 | 16mm |
| H2 | 91.5mm |
| J | 129mm |
| L | 166mm |
| N | 14mm |
| N1 | 21.5mm |
| S | 9.5mm |
| G | M6x1 |
| --- | Load rating |
| Dynamic load C | 25.7 kN |
| Static load C0 | 15.2 kN |
| --- | Unit information |
| Operating temperature min. | -20°C |
| Operating temperature max. | 100°C |
| Recommended tightening torque for set screw | 11.5 Nm |
| Mass | 1.6 kg |
