SKU: ESSP205-SNR

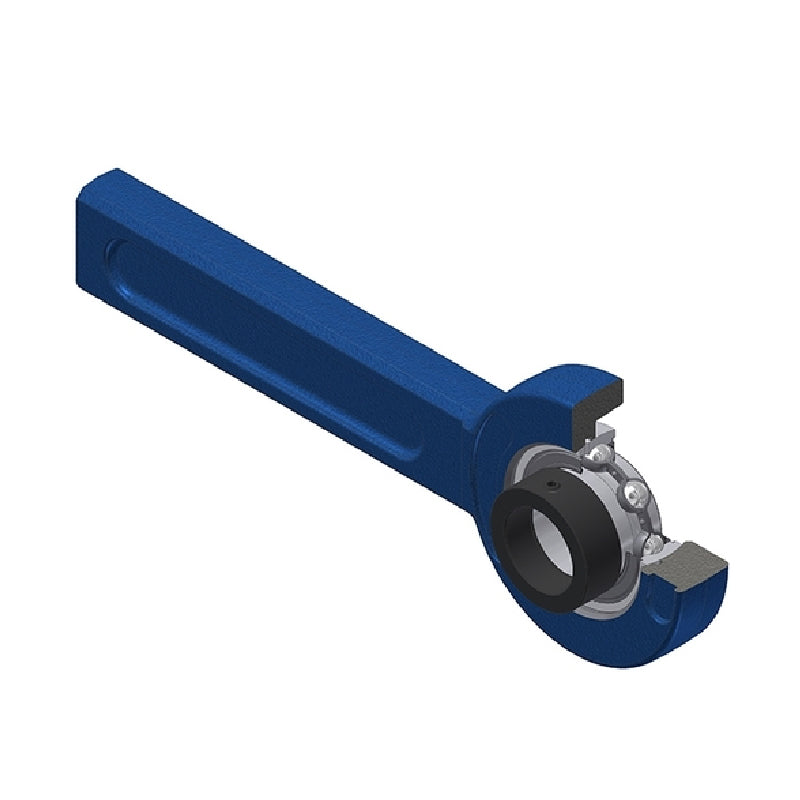

SNR ESSP205 Metric Cast Iron Tensioner Unit with 25mm Bore Eccentric Collar Insert - Allow 2-3 Days

SNR ESSP205 Metric Cast Iron Tensioner Unit with 25mm Bore Eccentric Collar Insert - Allow 2-3 Days
Regular price CHF 62.00 ex VAT
Regular price Sale price CHF 62.00 ex VAT
Sale Sold out

In stock

Price Break
3+ CHF 54.78
4+ CHF 52.56
9+ CHF 51.46
19+ CHF 49.80
49+ CHF 48.69
99+ CHF 45.92
499+ CHF 38.73
999+ CHF 0.00
1999+ CHF 0.00
2999+ CHF 0.00
4999+ CHF 0.00
Quantity
Request Quotation

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Technical
--- Dimensions
Shaft diameter 25mm
A 21mm
B1 30.9mm
d1 37.4mm
H 78mm
H2 41mm
L 264mm
L1 225mm
S 7.5mm
G R1/8″
--- Load rating
Dynamic load C 14 kN
Static load C0 7.88 kN
--- Unit information
Operating temperature min. -20°C
Operating temperature max. 100°C
Stretcher frame 2 SPR11
Stretcher frame 3 SPR12
Stretcher frame 4 SPR14
Mass 1.59 kg
