SKU: EST206N-SNR

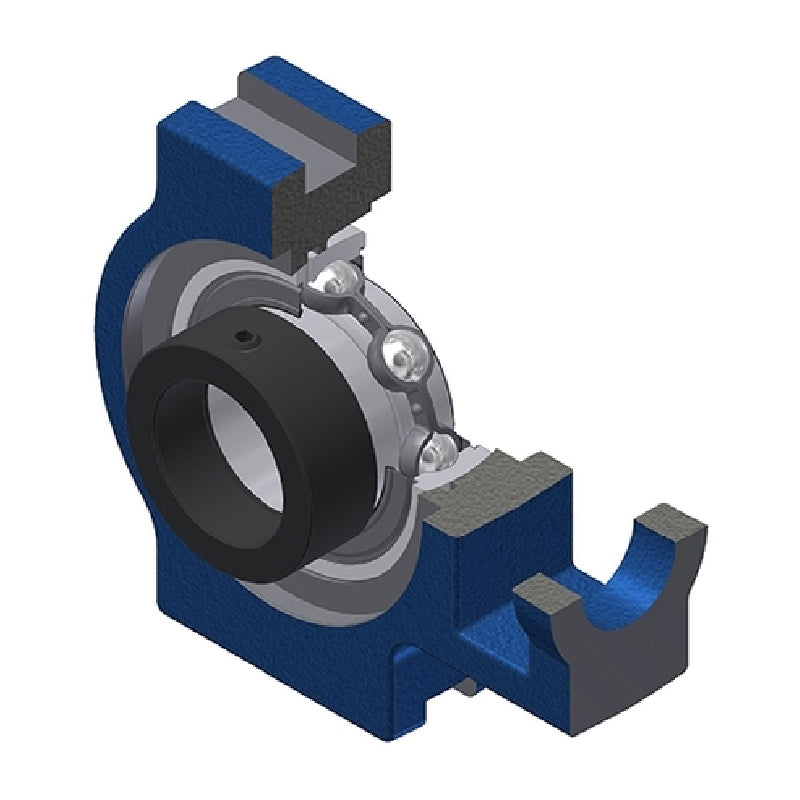

SNR EST206N Metric Cast Iron Take Up Unit with Eccentric Collar Insert 30mm Bore - Allow 2-3 Days
SNR EST206N Metric Cast Iron Take Up Unit with Eccentric Collar Insert 30mm Bore - Allow 2-3 Days
Regular price
CHF 50.00
ex VAT
Regular price
Sale price
CHF 50.00
ex VAT
In stock
Price Break
3+
CHF 43.85
4+
CHF 42.08
9+
CHF 41.19
19+
CHF 39.86
49+
CHF 38.98
99+
CHF 36.76
499+
CHF 31.00
999+
CHF 0.00
1999+
CHF 0.00
2999+
CHF 0.00
4999+
CHF 0.00
Share this product
Description
Description
EST200 Series Cast Iron Take Up Units: These bearing units are supplied with a fully sealed bearing insert fitted in the housing and include a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts can be removed from the housing for future replacement as required.
Benefits: Can be re-lubricated, replaceable bearing insert, grub screw fixing
- Brand / Quality:
- SNR - High Quality
- Inside Diameter:
- 30mm
- Style:
- EST
Technical
Technical
| --- | Dimensions |
|---|---|
| Shaft diameter d | 30mm |
| A | 37mm |
| A1 | 12mm |
| A2 | 28mm |
| B1 | 35.7mm |
| d1 | 44.1mm |
| H | 102mm |
| H1 | 89mm |
| H2 | 56mm |
| L | 113mm |
| L1 | 70mm |
| L2 | 10mm |
| L3 | 57mm |
| N | 22mm |
| N1 | 16mm |
| N2 | 37mm |
| S | 9mm |
| G | M6x1 |
| --- | Load rating |
| Dynamic load C | 19.5 kN |
| Static load C0 | 11.2 kN |
| --- | Unit information |
| Operating temperature min. | -20°C |
| Operating temperature max. | 100°C |
| Mass | 1.23 kg |
