SKU: EX313G2-SNR

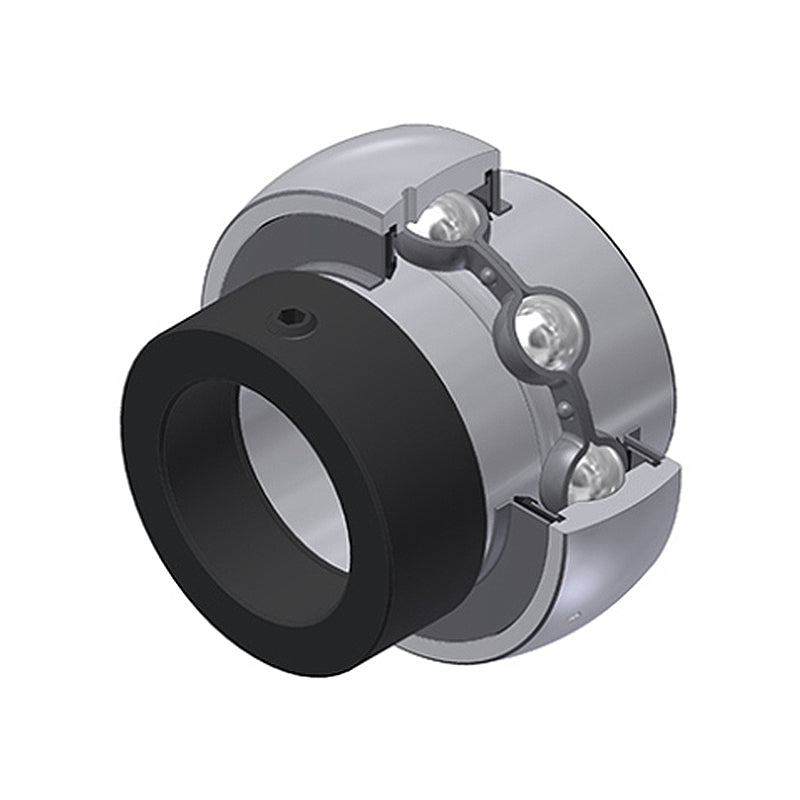

SNR EX313G2 Metric Full Width Spherical Outer Bearing Insert 65mm Bore 140mm Outside Diameter with Eccentric Collar
SNR EX313G2 Metric Full Width Spherical Outer Bearing Insert 65mm Bore 140mm Outside Diameter with Eccentric Collar
Regular price
CHF 149.24
ex VAT
Regular price
Sale price
CHF 149.24
ex VAT
In stock
Price Break
5+
CHF 147.75
10+
CHF 141.78
20+
CHF 138.79
50+
CHF 134.32
100+
CHF 131.33
500+
CHF 123.87
1000+
CHF 104.47
Couldn't load pickup availability
Share this product
Description
Description
SNR EX Full Width Spherical Outer Bearing Insert with Eccentric Collar: This bearing insert is a standard version designed for robust performance. Each steel insert features a single lip seal and slinger on both sides, along with a wide inner ring design. It includes a zinc-coated sheet steel retainer over-molded with NBR, with an axially preloaded seal lip and a preconnected, zinc-coated sheet steel slinger for improved protection against mechanical impacts and particles. This bearing insert supports medium to high rotation speeds.
Benefits: High-quality brand, high-performance, precision-engineered
- Brand / Quality:
- SNR - High Quality
- Thread Size:
- M12x1.25
- Inside Diameter:
- 65mm
- Outside Diameter:
- 140mm
- Width:
- 85.7mm
- Style:
- EX
- Type:
- Spherical Outer
Technical
Technical
| d | 65mm |
|---|---|
| D | 140mm |
| C | 38mm |
| B | 65.1mm |
| B1 | 85.7mm |
| B2 | 27mm |
| d1 | 97mm |
| S | 32.5mm |
| m | 11.5mm |
| C1 | 12.1mm |
| r min | 2mm |
| G | M12x1.25 |
| Wrench Size | 6mm |
| Set screw torque | 33 Nm |
| Min Temp | -20 deg C |
| Max Temp | 100 deg C |
| Dynamic load rating C | 93.9kN |
| Static load rating C0 | 60.5kN |
| Weight | 3.7kg |
