SNR EXC210 Metric Cast Iron Cartridge Unit with 50mm Bore Insert 31mm Outside Dia - Allow 2-3 Days
SNR EXC210 Metric Cast Iron Cartridge Unit with 50mm Bore Insert 31mm Outside Dia - Allow 2-3 Days
Regular price
CHF 60.00
ex VAT
Regular price
Sale price
CHF 60.00
ex VAT
In stock
Price Break
3+
CHF 47.19
4+
CHF 44.54
9+
CHF 44.01
19+
CHF 43.48
49+
CHF 42.95
99+
CHF 42.42
499+
CHF 39.76
999+
CHF 39.23
1999+
CHF 38.70
2999+
CHF 38.17
4999+
CHF 37.11
Share this product
Description
Description

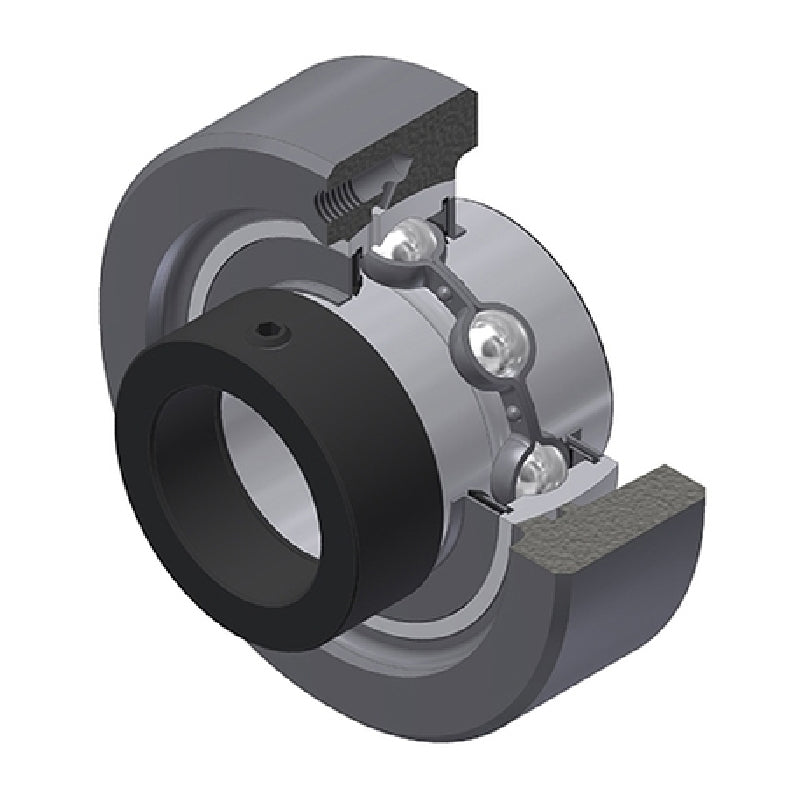

EXC200 Series Cast Iron Cartridge Unit: These bearing units are supplied with a fully sealed bearing insert fitted in the housing and include a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts can be removed from the housings for future replacement as required.
Benefits: Can be re-lubricated, replaceable bearing insert, grub screw fixing
- Brand / Quality:
- SNR - High Quality
- Inside Diameter:
- 50mm
- Style:
- EXC
Technical
Technical
| --- | Dimensions |
|---|---|
| Shaft diameter d | 50mm |
| A | 31mm |
| A3 | 2mm |
| B1 | 62.7mm |
| d1 | 67.2mm |
| H | 120mm |
| S | 24.6mm |
| G | M6x1 |
| --- | Load rating |
| Dynamic load C | 35.1 kN |
| Static load C0 | 23.2 kN |
| --- | Unit information |
| Operating temperature min. | -20°C |
| Operating temperature max. | 100°C |
| Mass | 2.11 kg |
