SKU: EXC306-SNR

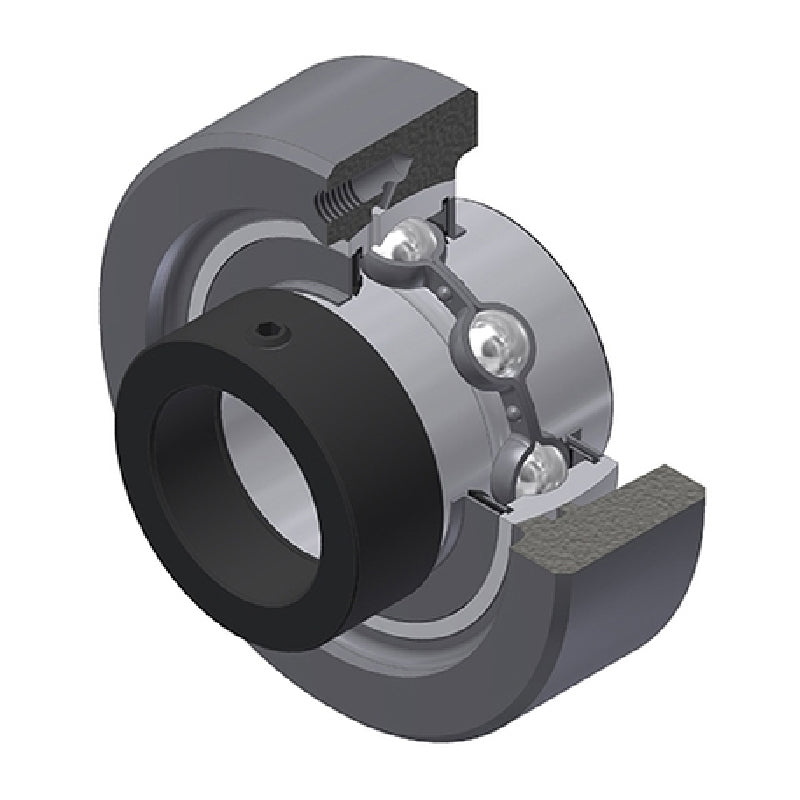

SNR EXC306 Metric Cast Iron Cartridge Unit with 30mm Bore Insert 28mm Outside Dia - Allow 2-3 Days
SNR EXC306 Metric Cast Iron Cartridge Unit with 30mm Bore Insert 28mm Outside Dia - Allow 2-3 Days
Regular price
CHF 75.00
ex VAT
Regular price
Sale price
CHF 75.00
ex VAT
In stock
Price Break
3+
CHF 65.81
4+
CHF 63.15
9+
CHF 61.82
19+
CHF 59.82
49+
CHF 58.49
99+
CHF 55.17
499+
CHF 46.53
999+
CHF 0.00
1999+
CHF 0.00
2999+
CHF 0.00
4999+
CHF 0.00
Share this product
Description
Description
EXC300 Series Cast Iron Cartridge Unit: These bearing units are supplied with a fully sealed bearing insert fitted in the housing and include a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts can be removed from the housings for future replacement as required.
Benefits: Can be re-lubricated, replaceable bearing insert, grub screw fixing
- Brand / Quality:
- SNR - High Quality
- Inside Diameter:
- 30mm
- Style:
- EXC
Technical
Technical
| --- | Dimensions |
|---|---|
| Shaft diameter d | 30mm |
| A | 28mm |
| A3 | 2mm |
| B1 | 50mm |
| d1 | 50mm |
| H | 100mm |
| S | 17.5mm |
| G | M6x1 |
| --- | Load rating |
| Dynamic load C | 27 kN |
| Static load C0 | 15.2 kN |
| --- | Unit information |
| Operating temperature min. | -20°C |
| Operating temperature max. | 100°C |
| Mass | 1.38 kg |
