SKU: EXC317-SNR

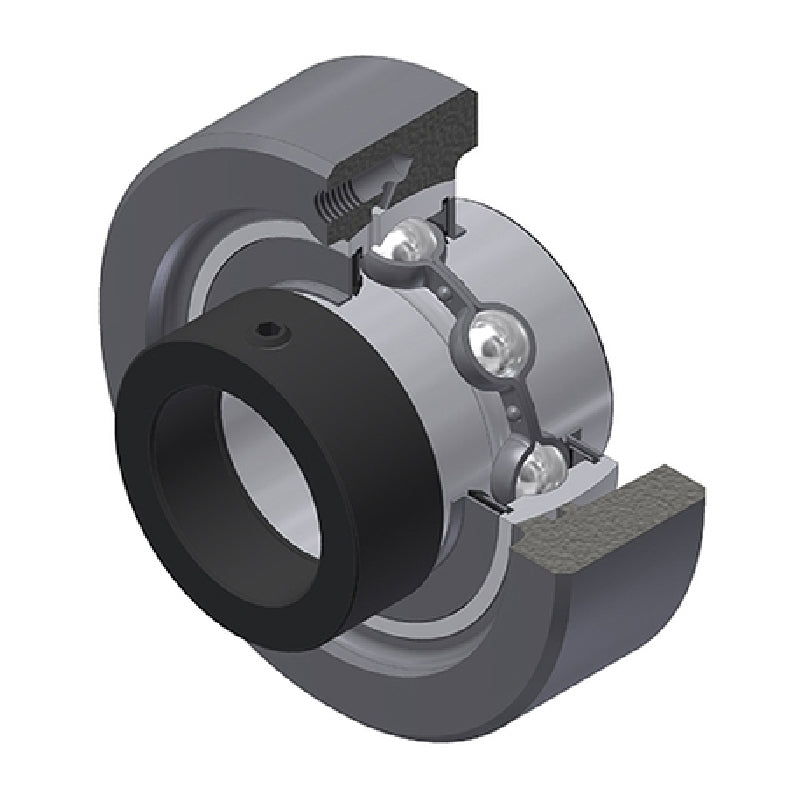

SNR EXC317 Metric Cast Iron Cartridge Unit with 85mm Bore Insert 64mm Outside Dia - Allow 2-3 Days
SNR EXC317 Metric Cast Iron Cartridge Unit with 85mm Bore Insert 64mm Outside Dia - Allow 2-3 Days
Regular price
CHF 496.00
ex VAT
Regular price
Sale price
CHF 496.00
ex VAT
In stock
Price Break
3+
CHF 439.00
4+
CHF 421.26
9+
CHF 412.39
19+
CHF 399.09
49+
CHF 390.22
99+
CHF 368.05
499+
CHF 310.40
999+
CHF 0.00
1999+
CHF 0.00
2999+
CHF 0.00
4999+
CHF 0.00
Share this product
Description
Description
EXC300 Series Cast Iron Cartridge Unit: These bearing units are supplied with a fully sealed bearing insert fitted in the housing and include a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts can be removed from the housings for future replacement as required.
Benefits: Can be re-lubricated, replaceable bearing insert, grub screw fixing
- Brand / Quality:
- SNR - High Quality
- Inside Diameter:
- 85mm
- Style:
- EXC
Technical
Technical
| --- | Dimensions |
|---|---|
| Shaft diameter d | 85mm |
| A | 64mm |
| A3 | 3mm |
| B1 | 109.5mm |
| d1 | 127mm |
| H | 215mm |
| S | 42mm |
| G | M10x1 |
| --- | Load rating |
| Dynamic load C | 132.6 kN |
| Static load C0 | 96.5 kN |
| --- | Unit information |
| Operating temperature min. | -20°C |
| Operating temperature max. | 100°C |
| Mass | 12.86 kg |
