SKU: EXFE210T04-SNR

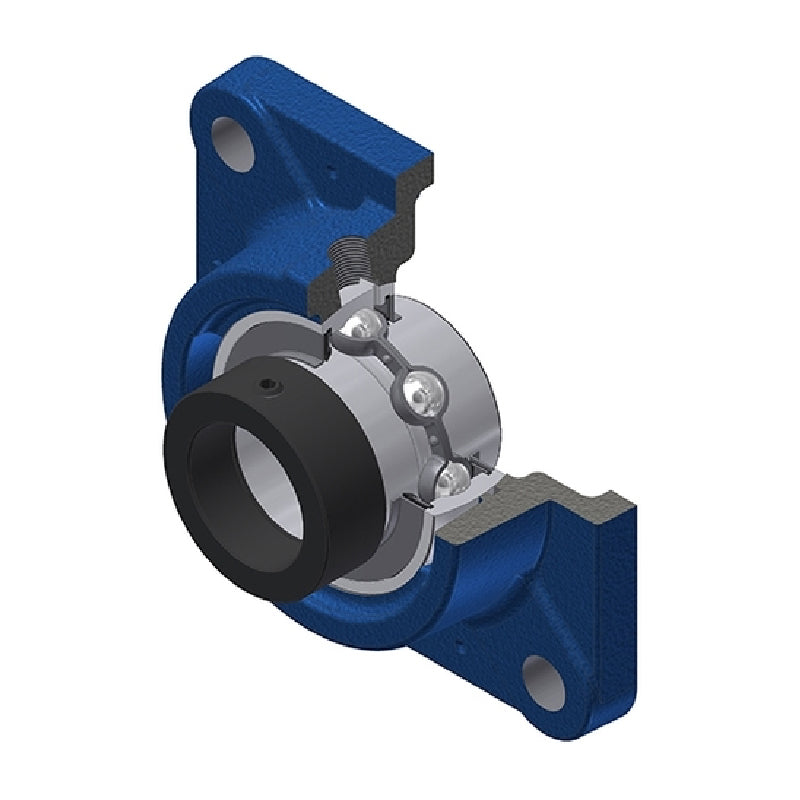

SNR EXFE210T04 Metric Four Bolt Square Cast Iron Flange Housing with 50mm Bore Eccentric Collar Insert Low Temperature Version - Allow 2-3 Days
SNR EXFE210T04 Metric Four Bolt Square Cast Iron Flange Housing with 50mm Bore Eccentric Collar Insert Low Temperature Version - Allow 2-3 Days
Regular price
CHF 174.00
ex VAT
Regular price
Sale price
CHF 174.00
ex VAT
In stock
Price Break
3+
CHF 153.49
4+
CHF 147.29
9+
CHF 144.19
19+
CHF 139.54
49+
CHF 136.44
99+
CHF 128.68
499+
CHF 108.53
999+
CHF 0.00
1999+
CHF 0.00
2999+
CHF 0.00
4999+
CHF 0.00
Share this product
Description
Description
EXFE200 Series 4 Bolt Cast Iron Square Flange Housing: These cast iron housing units include a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required.
Benefits: High tolerance to harsh environments, cost-effective bearing/housing assembly, re-lubricatable, replaceable insert, grub screw fixing
- Brand / Quality:
- SNR - High Quality
- Inside Diameter:
- 50mm
- Style:
- EXFE
- Bolt Hole Centres:
- 111mm
Technical
Technical
| --- | Dimensions |
|---|---|
| Shaft diameter | 50mm |
| A | 44mm |
| A1 | 13mm |
| A2 | 66.1mm |
| B | 49.2mm |
| B1 | 62.7mm |
| d1 | 67.2mm |
| e | 28mm |
| J | 111mm |
| L | 143mm |
| N | 18mm |
| S | 24.6mm |
| G | R1/8″ |
| --- | Load rating |
| Dynamic load C | 35.1 kN |
| Static load C0 | 23.2 kN |
| --- | Unit information |
| Operating temperature min. | -40°C |
| Operating temperature max. | 100°C |
| Recommended tightening torque for set screw | 11.5 Nm |
| Mass | 2.77 kg |
