SKU: EXFL215-SNR

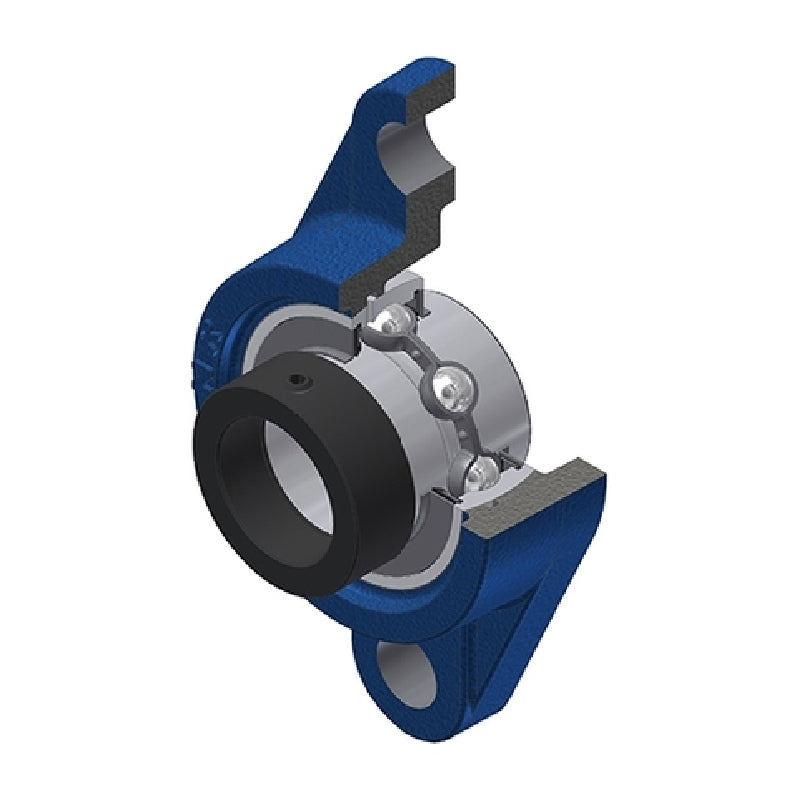

SNR EXFL215 Metric Two Bolt Cast Iron Oval Housing with 75mm Bore Eccentric Collar Insert - Allow 2-3 Days
SNR EXFL215 Metric Two Bolt Cast Iron Oval Housing with 75mm Bore Eccentric Collar Insert - Allow 2-3 Days
Regular price
CHF 223.72
ex VAT
Regular price
Sale price
CHF 223.72
ex VAT
In stock
Price Break
5+
CHF 221.48
10+
CHF 212.53
20+
CHF 208.06
50+
CHF 201.35
100+
CHF 196.87
500+
CHF 185.69
1000+
CHF 156.60
Couldn't load pickup availability
Description
Description
EXFL200 Series 2 Bolt Cast Iron Oval Housings: These bearing units are supplied with a fully sealed bearing insert fitted in the housing and include a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts can be removed from the housings for future replacement as required.
Benefits: Can be re-lubricated, replaceable bearing insert, grub screw fixing
- Brand / Quality:
- SNR - High Quality
- Inside Diameter:
- 75mm
- Style:
- EXFL
- Bolt Hole Centres:
- 225mm
Technical
Technical
| --- | Dimensions |
|---|---|
| Shaft diameter d | 75mm |
| A | 55mm |
| A1 | 22mm |
| A2 | 88.8mm |
| B | 74.6mm |
| B1 | 92.1mm |
| d1 | 102mm |
| e | 34mm |
| H | 275mm |
| J | 225mm |
| L | 164mm |
| N | 23mm |
| S | 37.3mm |
| G | M10x1 |
| --- | Load rating |
| Dynamic load C | 66 kN |
| Static load C0 | 49.5 kN |
| --- | Unit information |
| Operating temperature min. | -20°C |
| Operating temperature max. | 100°C |
| Recommended tightening torque for set screw | 22 Nm |
| Mass | 6 kg |
