SKU: EXFL319-SNR

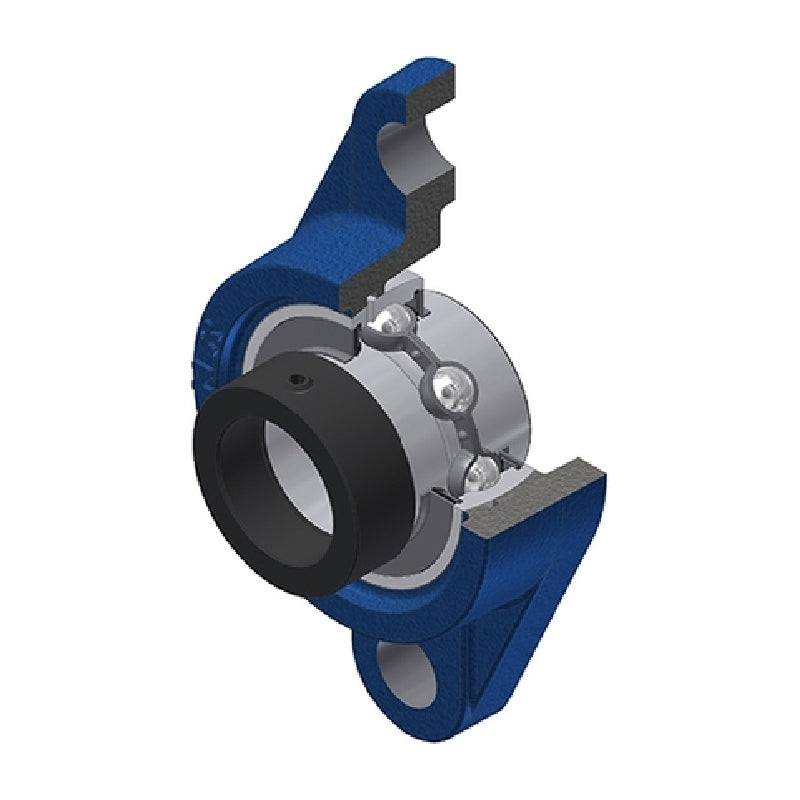

SNR EXFL319 Metric Two Bolt Cast Iron Oval Housing with 95mm Bore Eccentric Collar Insert - Allow 2-3 Days
SNR EXFL319 Metric Two Bolt Cast Iron Oval Housing with 95mm Bore Eccentric Collar Insert - Allow 2-3 Days
Regular price
CHF 627.00
ex VAT
Regular price
Sale price
CHF 627.00
ex VAT
In stock
Price Break
3+
CHF 532.62
4+
CHF 504.59
9+
CHF 476.55
19+
CHF 448.52
49+
CHF 437.31
99+
CHF 426.09
499+
CHF 370.03
999+
CHF 0.00
1999+
CHF 0.00
2999+
CHF 0.00
4999+
CHF 0.00
Share this product
Description
Description
EXFL300 Series 2 Bolt Cast Iron Oval Housings: These bearing units are supplied with a fully sealed bearing insert fitted in the housing and include a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts can be removed from the housings for future replacement as required.
Benefits: Can be re-lubricated, replaceable bearing insert, grub screw fixing
- Brand / Quality:
- SNR - High Quality
- Inside Diameter:
- 95mm
- Style:
- EXFL
- Bolt Hole Centres:
- 330mm
Technical
Technical
| --- | Dimensions |
|---|---|
| Shaft diameter d | 95mm |
| A | 94mm |
| A1 | 40mm |
| A2 | 134.5mm |
| B | 93.7mm |
| B1 | 122.3mm |
| d1 | 140mm |
| e | 59mm |
| H | 405mm |
| J | 330mm |
| L | 250mm |
| N | 41mm |
| S | 46.8mm |
| G | M10x1 |
| --- | Load rating |
| Dynamic load C | 156 kN |
| Static load C0 | 122 kN |
| --- | Unit information |
| Operating temperature min. | -20°C |
| Operating temperature max. | 100°C |
| Recommended tightening torque for set screw | 120 Nm |
| Mass | 22.57 kg |
