SKU: EXFLE206-SNR

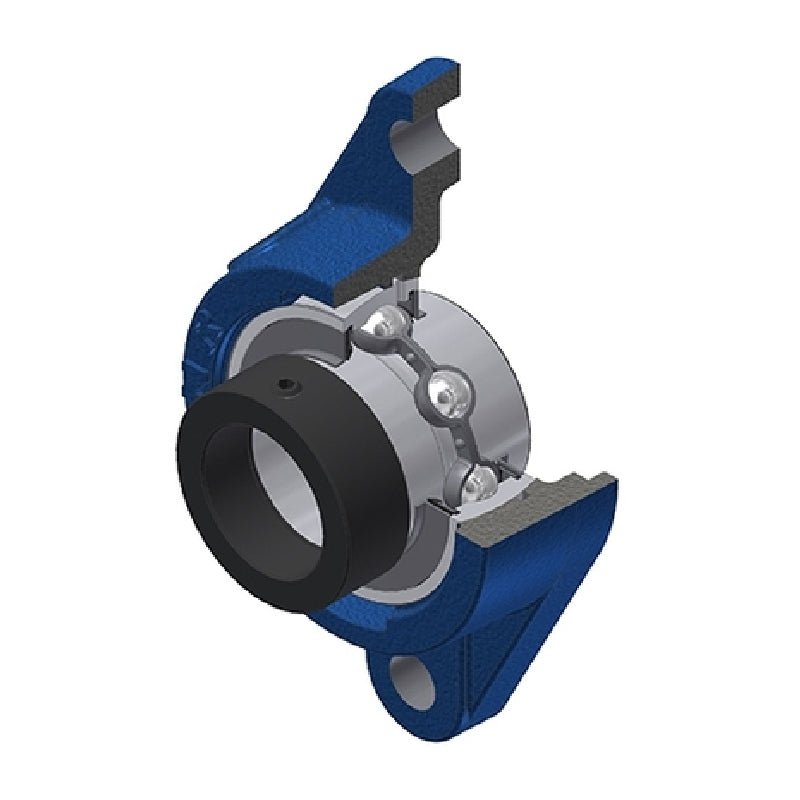

SNR EXFLE206 Metric Two Bolt Cast Iron Oval Housing with 30mm Bore Eccentric Collar Insert
SNR EXFLE206 Metric Two Bolt Cast Iron Oval Housing with 30mm Bore Eccentric Collar Insert
Regular price
CHF 34.00
ex VAT
Regular price
Sale price
CHF 34.00
ex VAT
In stock
Price Break
3+
CHF 26.69
4+
CHF 25.19
9+
CHF 24.89
19+
CHF 24.59
49+
CHF 24.29
99+
CHF 23.99
499+
CHF 22.49
999+
CHF 22.19
1999+
CHF 21.89
2999+
CHF 21.59
4999+
CHF 20.99
Share this product
Description
Description
EXFLE200 Series 2 Bolt Cast Iron Oval Housings: These bearing units are supplied with a fully sealed bearing insert fitted in the housing and include a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts can be removed from the housings for future replacement as required.
Benefits: Can be re-lubricated, replaceable bearing insert, grub screw fixing
- Brand / Quality:
- SNR - High Quality
- Inside Diameter:
- 30mm
- Style:
- EXFLE
- Bolt Hole Centres:
- 116.5mm
Technical
Technical
| --- | Dimensions |
|---|---|
| Shaft diameter d | 30mm |
| A | 32.1mm |
| A1 | 12mm |
| A2 | 50.1mm |
| B | 36.4mm |
| B1 | 48.3mm |
| d1 | 44.1mm |
| e | 20mm |
| H | 142mm |
| J | 116.5mm |
| L | 80mm |
| N | 11.5mm |
| S | 18.2mm |
| G | R1/8″ |
| --- | Load rating |
| Dynamic load C | 19.5 kN |
| Static load C0 | 11.2 kN |
| --- | Unit information |
| Operating temperature min. | -20°C |
| Operating temperature max. | 100°C |
| Recommended tightening torque for set screw | 11.5 Nm |
| Mass | 0.91 kg |
