SKU: EXFLE207L3-SNR

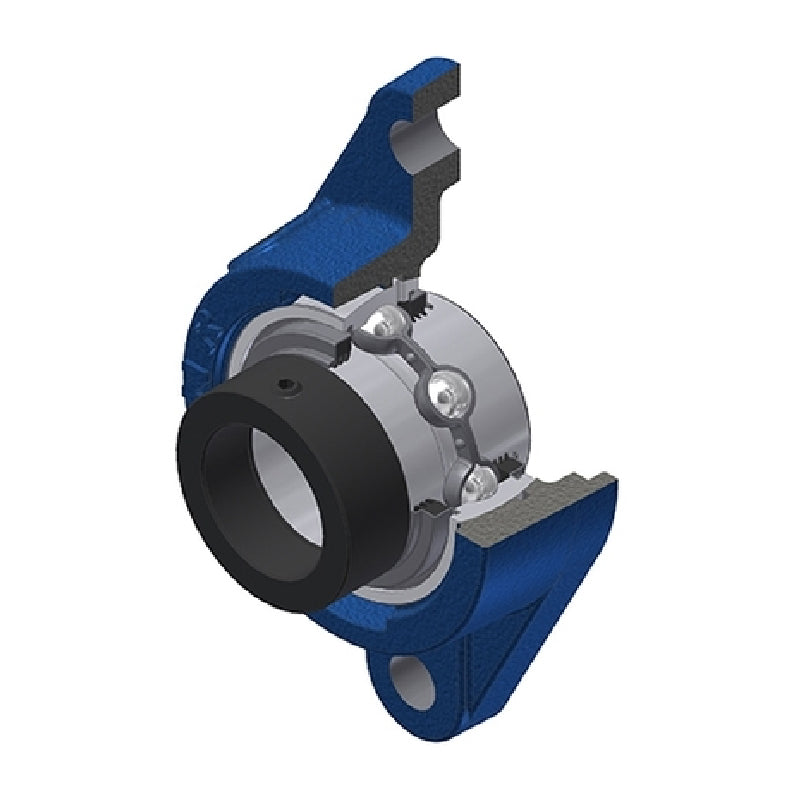

SNR EXFLE207L3 Metric Two Bolt Cast Iron Oval Housing with 35mm Bore Eccentric Collar Insert with Triple Lip Seal
SNR EXFLE207L3 Metric Two Bolt Cast Iron Oval Housing with 35mm Bore Eccentric Collar Insert with Triple Lip Seal
Regular price
CHF 56.00
ex VAT
Regular price
Sale price
CHF 56.00
ex VAT
In stock
Price Break
3+
CHF 44.61
4+
CHF 42.10
9+
CHF 41.60
19+
CHF 41.10
49+
CHF 40.60
99+
CHF 40.10
499+
CHF 37.59
999+
CHF 37.09
1999+
CHF 36.59
2999+
CHF 36.09
4999+
CHF 35.09
Share this product
Description
Description
EXFLE200 Series 2 Bolt Cast Iron Oval Housings: These bearing units are supplied with a fully sealed bearing insert fitted in the housing and include a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts can be removed from the housings for future replacement as required.
Benefits: Can be re-lubricated, replaceable bearing insert, grub screw fixing
- Brand / Quality:
- SNR - High Quality
- Inside Diameter:
- 35mm
- Style:
- EXFLE
- Bolt Hole Centres:
- 130mm
Technical
Technical
| --- | Dimensions |
|---|---|
| Shaft diameter d | 35mm |
| A | 33.7mm |
| A1 | 12.5mm |
| A2 | 53.3mm |
| B | 37.6mm |
| B1 | 51.1mm |
| d1 | 51.1mm |
| e | 21mm |
| H | 155mm |
| J | 130mm |
| L | 92mm |
| N | 14mm |
| S | 18.8mm |
| G | R1/8″ |
| --- | Load rating |
| Dynamic load C | 25.7 kN |
| Static load C0 | 15.2 kN |
| --- | Unit information |
| Operating temperature min. | -20°C |
| Operating temperature max. | 100°C |
| Recommended tightening torque for set screw | 11.5 Nm |
| Mass | 1.3 kg |
