SKU: EXFLE208-SNR

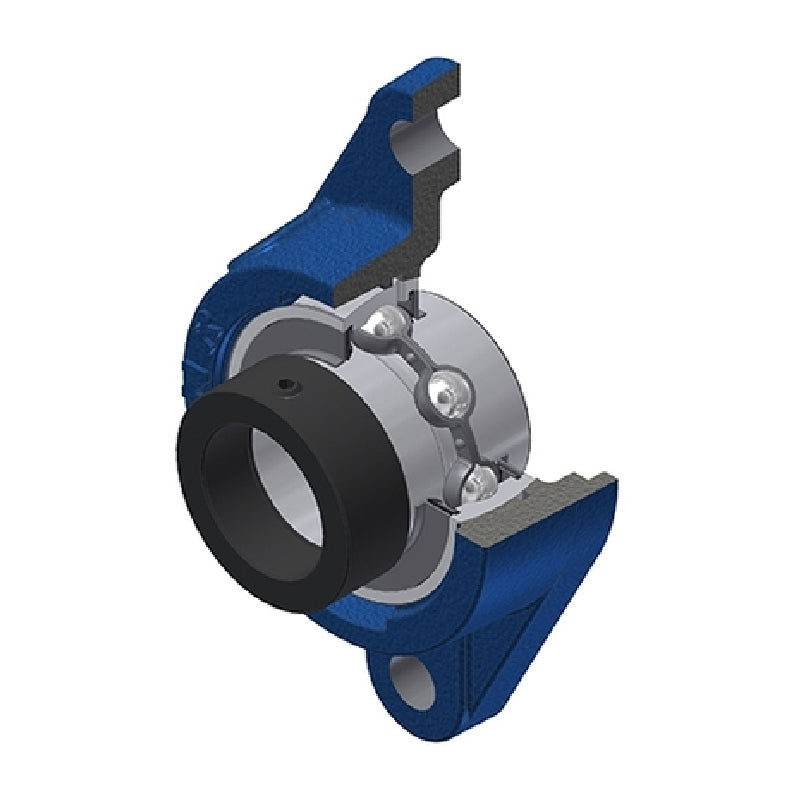

SNR EXFLE208 Metric Two Bolt Cast Iron Oval Housing with 40mm Bore Eccentric Collar Insert - Allow 2-3 Days
SNR EXFLE208 Metric Two Bolt Cast Iron Oval Housing with 40mm Bore Eccentric Collar Insert - Allow 2-3 Days
Regular price
CHF 44.00
ex VAT
Regular price
Sale price
CHF 44.00
ex VAT
In stock
Price Break
3+
CHF 34.31
4+
CHF 32.39
9+
CHF 32.00
19+
CHF 31.62
49+
CHF 31.23
99+
CHF 30.84
499+
CHF 28.92
999+
CHF 28.53
1999+
CHF 28.15
2999+
CHF 27.76
4999+
CHF 26.99
Share this product
Description
Description
EXFLE200 Series 2 Bolt Cast Iron Oval Housings: These bearing units are supplied with a fully sealed bearing insert fitted in the housing and include a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts can be removed from the housings for future replacement as required.
Benefits: Can be re-lubricated, replaceable bearing insert, grub screw fixing
- Brand / Quality:
- SNR - High Quality
- Inside Diameter:
- 40mm
- Style:
- EXFLE
- Bolt Hole Centres:
- 143.5mm
Technical
Technical
| --- | Dimensions |
|---|---|
| Shaft diameter d | 40mm |
| A | 37.5mm |
| A1 | 13mm |
| A2 | 58.9mm |
| B | 42.8mm |
| B1 | 56.3mm |
| d1 | 58mm |
| e | 24mm |
| H | 172mm |
| J | 143.5mm |
| L | 105mm |
| N | 14mm |
| S | 21.4mm |
| G | R1/8″ |
| --- | Load rating |
| Dynamic load C | 29.6 kN |
| Static load C0 | 18.2 kN |
| --- | Unit information |
| Operating temperature min. | -20°C |
| Operating temperature max. | 100°C |
| Recommended tightening torque for set screw | 11.5 Nm |
| Mass | 1.78 kg |
