SKU: EXFLZ208-SNR

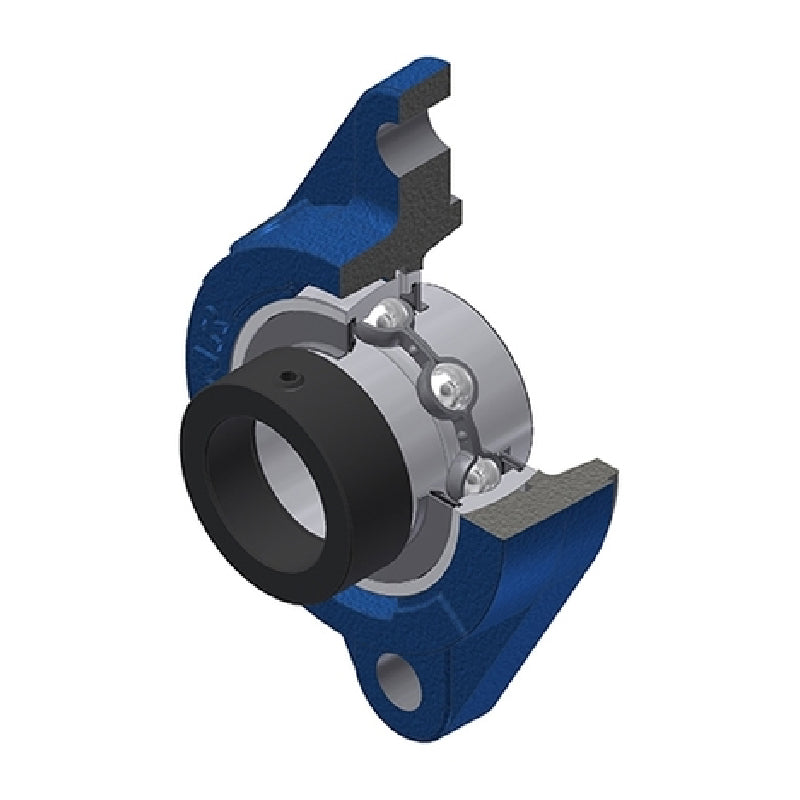

SNR EXFLZ208 Metric Two Bolt Cast Iron Oval Housing with 40mm Bore Eccentric Collar Insert - Allow 2-3 Days

SNR EXFLZ208 Metric Two Bolt Cast Iron Oval Housing with 40mm Bore Eccentric Collar Insert - Allow 2-3 Days
Regular price CHF 62.00 ex VAT
Regular price Sale price CHF 62.00 ex VAT
Sale Sold out

In stock

Price Break
3+ CHF 54.86
4+ CHF 52.64
9+ CHF 51.53
19+ CHF 49.87
49+ CHF 48.76
99+ CHF 45.99
499+ CHF 38.79
999+ CHF 0.00
1999+ CHF 0.00
2999+ CHF 0.00
4999+ CHF 0.00
Quantity
Request Quotation

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Technical
--- Dimensions
Shaft diameter d 40mm
A 36mm
A1 13mm
A2 54.9mm
A4 32mm
B 42.8mm
B1 56.3mm
d1 58mm
e 20mm
H 172mm
H3 100mm
J 143.5mm
L 105mm
N 14mm
S 21.4mm
G R1/8″
--- Load rating
Dynamic load C 29.6 kN
Static load C0 18.2 kN
--- Unit information
Operating temperature min. -20°C
Operating temperature max. 100°C
Recommended tightening torque for set screw 11.5 Nm
Mass 1.88 kg
