SKU: EXP310-SNR

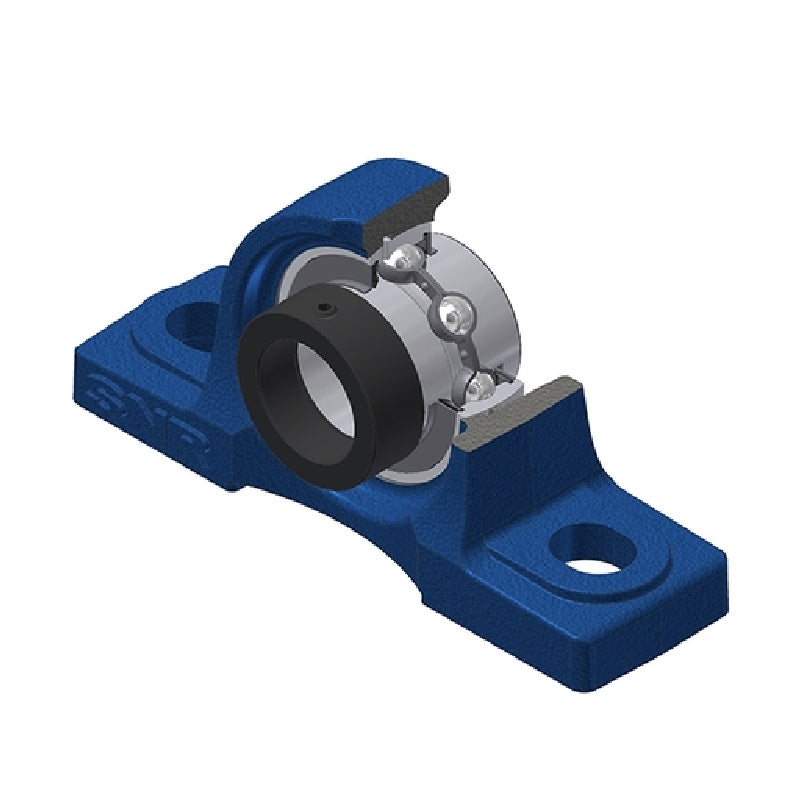

SNR EXP310 Metric Cast Iron Two Bolt Pillow / Plummer Block Housing with 50mm Eccentric Collar Insert - Allow 2-3 Days
SNR EXP310 Metric Cast Iron Two Bolt Pillow / Plummer Block Housing with 50mm Eccentric Collar Insert - Allow 2-3 Days
Regular price
CHF 97.00
ex VAT
Regular price
Sale price
CHF 97.00
ex VAT
In stock
Price Break
3+
CHF 77.21
4+
CHF 72.87
9+
CHF 72.00
19+
CHF 71.14
49+
CHF 70.27
99+
CHF 69.40
499+
CHF 65.06
999+
CHF 64.20
1999+
CHF 63.33
2999+
CHF 62.46
4999+
CHF 60.73
Share this product
Description
Description
EXP200 Series 2 Bolt Cast Iron Pillow Block Housings: These bearing units are supplied with a fully sealed bearing insert fitted in the housing and include a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts can be removed from the housings for future replacement as required.
Benefits: Can be re-lubricated, replaceable bearing insert, grub screw fixing
- Brand / Quality:
- SNR - High Quality
- Inside Diameter:
- 50mm
- Style:
- EXP
- Bolt Hole Centres:
- 212mm
Technical
Technical
| --- | Dimensions |
|---|---|
| Shaft diameter d | 50mm |
| A | 75mm |
| A1 | 48mm |
| B | 49.2mm |
| d1 | 76.2mm |
| H | 75mm |
| H1 | 27mm |
| H2 | 143mm |
| J | 212mm |
| L | 275mm |
| L1 | 75mm |
| N | 20mm |
| N1 | 35mm |
| S | 24.6mm |
| Dz | mm |
| Z | mm |
| G | M6x1 |
| --- | Load rating |
| Dynamic load C | 62 kN |
| Static load C0 | 37.8 kN |
| --- | Unit information |
| Operating temperature min. | -20°C |
| Operating temperature max. | 100°C |
| Recommended tightening torque for set screw | 22 Nm |
| Mass | 6.36 kg |
