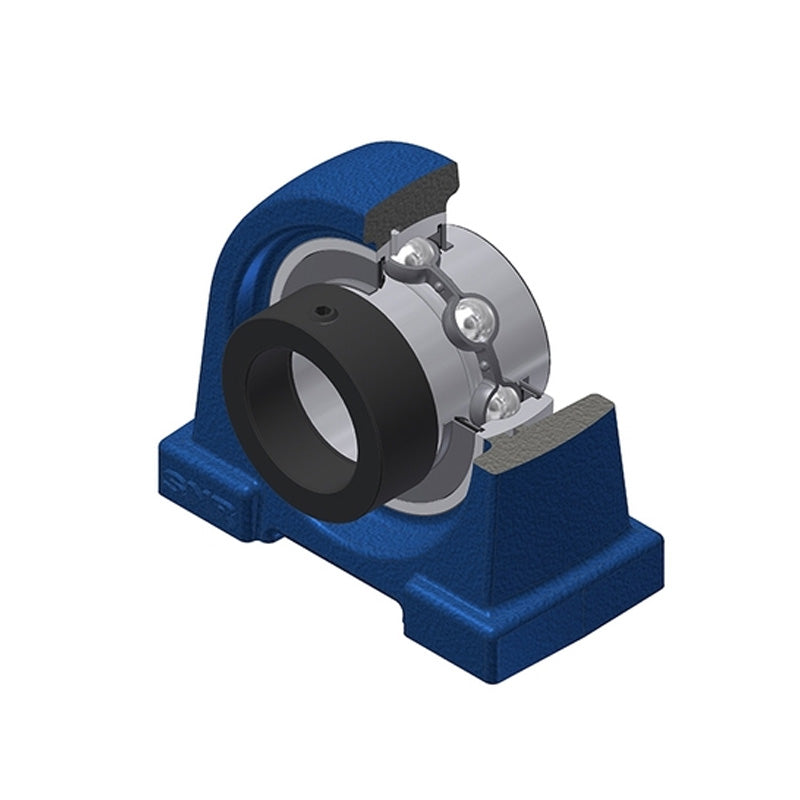

• SNR EXPA209 Threaded Base Small Footprint Metric Pillow / Plummer Block Housing with Eccentric Collar Insert 45mm Bore - Allow 2-3 Days
1 1

SKU: EXPA209-SNR

SNR EXPA209 Threaded Base Small Footprint Metric Pillow / Plummer Block Housing with Eccentric Collar Insert 45mm Bore - Allow 2-3 Days

SNR EXPA209 Threaded Base Small Footprint Metric Pillow / Plummer Block Housing with Eccentric Collar Insert 45mm Bore - Allow 2-3 Days
CHF 75.00 ex VAT
CHF 75.00 ex VAT
Sale Sold out

In stock

Price Break
3+ CHF 65.79
4+ CHF 63.13
9+ CHF 61.80
19+ CHF 59.81
49+ CHF 58.48
99+ CHF 55.15
499+ CHF 46.52
999+ CHF 0.00
1999+ CHF 0.00
2999+ CHF 0.00
4999+ CHF 0.00
Request Quotation

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
SNR - High Quality
Inside Diameter:
45mm
Style:
EXPA
Bolt Hole Centres:
90mm
Technical
--- Dimensions
Shaft diameter 45mm
A 60mm
A1 32mm
B 42.8mm
d1 62mm
E 25mm
H 54.2mm
H1 13mm
H2 108mm
J 90mm
L 120mm
L1 42mm
N M14
S 21.4mm
G M6x1
--- Load rating
Dynamic load C 31.85 kN
Static load C0 20.8 kN
Operating temperature min. -20°C
Operating temperature max. 100°C
--- Unit information
Recommended tightening torque for set screw 11.5 Nm
Mass 2.37 kg
